Manufacturer: Naina Semiconductor

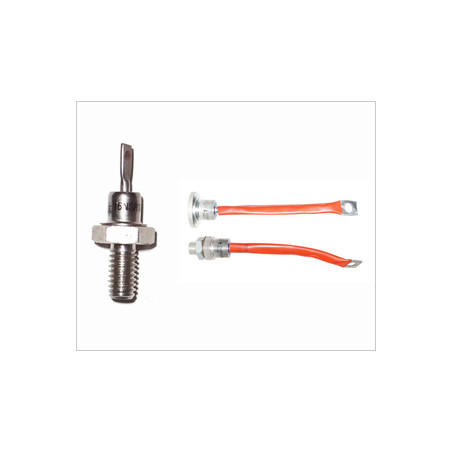

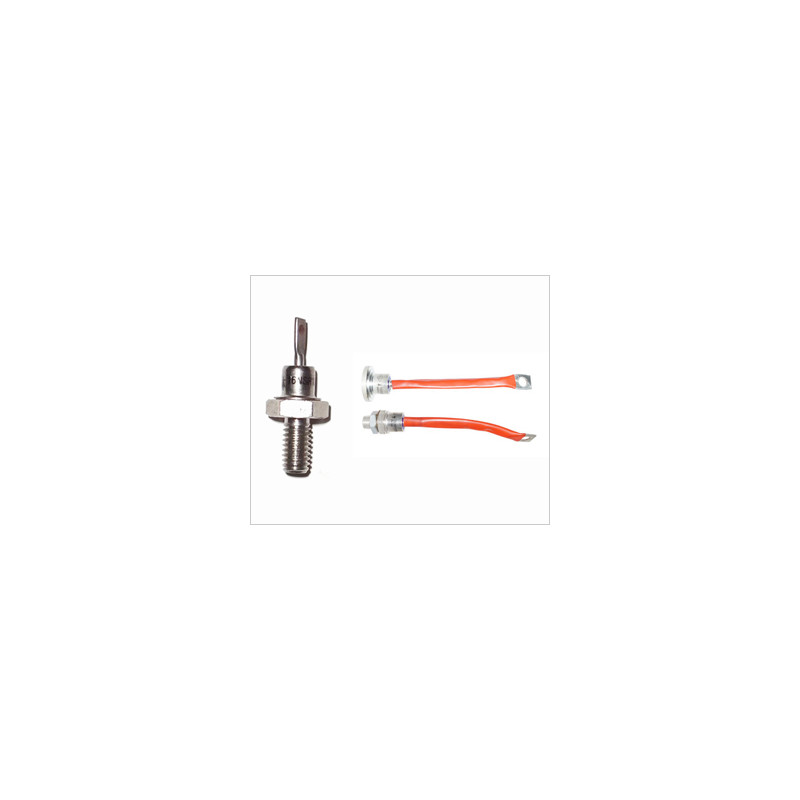

12NSFR Fast Return Diode

  • 12NSFR
  • IFAV 12
  • IFSM 150
  • Package DO-4
  • VRRM (V) 100-1600
  • 1,4
    2,1
    350

Fast recovery diodes are made from glass-passivated circuits and assembled in highly reliable, robust, hermetically sealed housings. They are mechanically robust and stable in adverse environmental conditions.

Features

  • Very low reverse recovery time
  • Very low switching losses
  • Can be classified as Super-Fast Recovery Diodes based on recovery time

Applications

  • DC-AC conversion (inverters)
  • Power factor correction (PFC) systems
  • Automotive sector
  • All types of switching power supplies
  • Other industrial devices

Parameters

Parameter Value
Current Range 12 A – 150 A
Max. Voltage up to 1800 V
Housings Stud Base
Threads Metric and UNF


Changeable housing and thread dimensions
