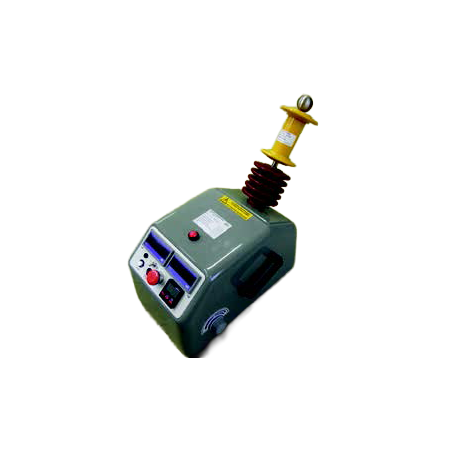

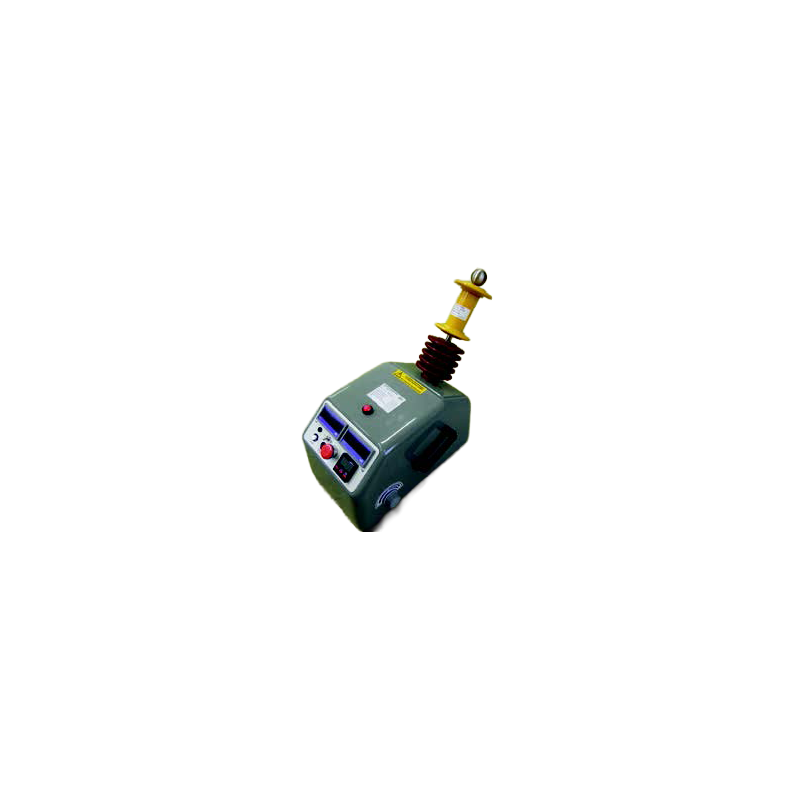

ABK type cable testing devices

ABK-type devices are ideal for acceptance testing of medium-voltage power cables. Their small size and ergonomic design allow for easy use during field tests. ABK cable testing devices, often referred to as "KENETRON," have enjoyed the trust of many customers both in Poland and abroad for many years. ABK-type devices provide a source of half-wave rectified voltage. However, by easily disassembling the rectifier, it is also possible to obtain an AC voltage source.

Features:

ABK type C

• Various rectified voltage ranges – depending on the model: 45, 55, 63, or 70 kV;

• Digital meters enabling the measurement of the True RMS value of current and voltage;

• Measurement of the DC and AC components of leakage current;

• Minimized voltage measurement error.


     ABK 45C                      ABK 63C                         ABK 70C
     ABK 55C

ABK type A

• Various rectified voltage ranges – depending on the model: 45, 55, 63, or 70 kV;

• Analog current and voltage meters;

• Measurement of the DC component of the leakage current.



      ABK 45A                ABK 63A                       ABK 70A
      ABK 55A

Data Technical:

Type ABK-45C ABK-45A ABK-55C ABK-55A ABK-63C ABK-63A ABK-70C ABK-70A
Supply voltage 50 Hz (V) 230 230 230 230 230 230 230 230
AC secondary voltage (kV) 0-32 0-32 0-39 0-39 0-45 0-45 0-50 0-50
Secondary rectified voltage (kV) 0-45 0-45 0-55 0-55 0-63 0-63 0-70 0-70
Maximum continuous current (mA) 6 6 10 10 10 10 5 6
Maximum current 30-min (mA) 10 10 10 15 15 15 6 6
Device DC test voltage (kV) 54 54 66 66 76 76 84 84
Voltage measurement accuracy (%) ±2 ±4 ±2 ±2 ±2 ±2 ±2 ±2
Current measurement accuracy (%) ±2 ±2 ±2 ±2 ±2 ±2 ±3 ±3
Voltage polarity DC + + + + + + + +
Weight (kg) 26 26 26 26 48 48 40 40

Advantages:

• Smooth voltage regulation;

• Safety lock to prevent accidental voltage reconnection;

• Device protection with an electronic overload release;

• Easy to use thanks to appropriate control and signaling systems;

• Ergonomic design for easy testing;

• Mobility;

• Can be used as a rectified or alternating high voltage source;

• Suitable for field testing thanks to a durable aluminum alloy housing and the ability to disassemble the rectifier;

• Production process parameters compliant with the Quality Management System according to PN-EN ISO 9001:2009.

Optional equipment:

• Discharge rod;

• HV cable - length according to customer needs.

Less
Read more

Send an inquiry
