Rotational switches - GN, 4G, GX, GF series
  • Rotational switches - GN, 4G, GX, GF series

Photos are for informational purposes only. View product specification

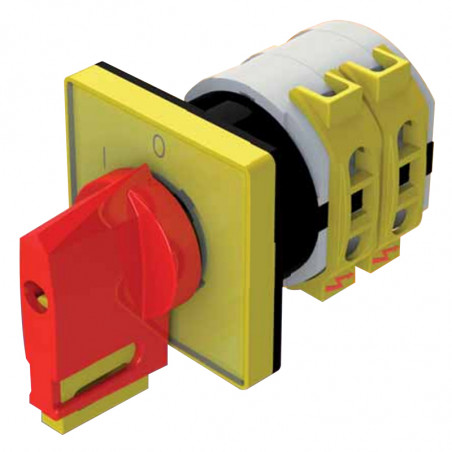

Rotational switches - GN, 4G, GX, GF series

Rotational switches
Rotational switches - GN, 4G, GX, GF series

Rotary switches are used in AC voltage systems, voltage 690V and current up to 1250A. They are designed with newest technology and best insulating materials. They biggest advantages are: high turn off capability, high mechanical and electrical withstand and small dimensions. Variety of options and many additional accessories allow for a wide range of application.

TypeSize
[mm]
STANDARD IEC 60947 -1,3
Insulation voltage
Uj[V]
Current
Ith[A]
3 x 380-400 [V]
AC-3 [kW]AC-23 [kW]
GN12 A0/ -48 x 48 690 12 6 4
GN20 A0 / -48 x 48 690 20 7,5 5,5
GN25 A0 / -48 x 48 690 25 11 7,5
GN32 A1 / -65 x 65 690 32 15 11
GN40 A1 / -65 x 65 690 40 18,5 15
GN63 A1 / -65 x 65 690 63 30 18,5
GN125 A2 / -90 x 90 690 125 45 37
GX16 A0 / -48 x 48 690 16 6,5 4,5
GX20 A0 / -48 x 48 690 20 7,5 5,5
GX32 A1 / -65 x 65 690 32 15 11
GX40 A1 / -65 x 65 690 40 18,5 14
GF10 A00/ -30 x 30 480 10 3 2,2
GF20 A0 / -48 x 48 480 20 7,5 5

TypeSize
[mm]
STANDARD IEC 60947 - 1,3
Insulation voltage
Uj [V]
Current
Ith[A] tn
3 x 690 [V]3 x 380-400 [V]
AC-1/AC-21 [A]AC-3/AC-23 [kW]
4G10 A0 / -48 x 48 690 12 12 4/6
4G16 A1 / -65 x 65 690 20 16 8
4G25 Al / -65 x 65 690 25 25 13
4G40 A2 / -90 x 90 690 50 50 21
4G63 A2 / -90 x 90 690 63 63 32
4G80 A2 / -90 x 90 690 80 80 37
4G100 A3 / -132 x 132 690 125 125 47
4G200 A3 / -132 x 132 690 200 200 47
4G400 A3 / -132 x 132 690 400 400 47
4G630 A3 / -132 x 132 690 630 630 47
4G800 A3 / -132 x 132 690 800 800 47
4G1200 A3 / -132 x 132 690 1200 1200 47
