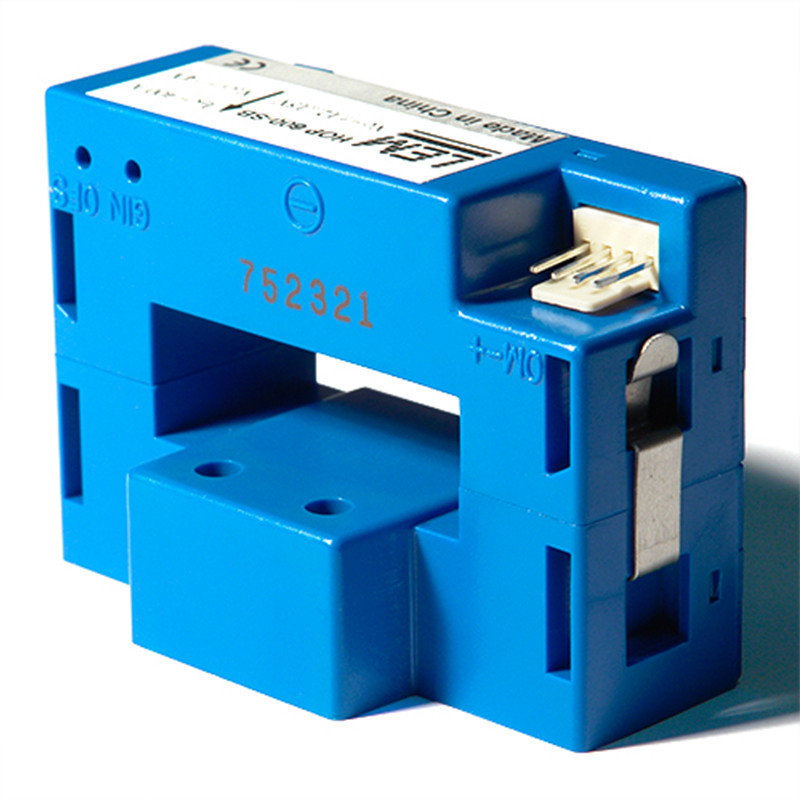

HOP 2000-SB/SP1 | |
---|---|
Primary nominal current rms IPNSK | 2000A |
Primary current, measuring range IPmax | 3000A |
Mechanical characteristics
|
|
• General tolerance
|
± 1 mm
|
• Primary aperture
|
163x50 mm (±2)
|
• Busbar fastening
|
1 hole Ø5,5 i 2 slots5,5 x 30
|
• Panel mounting
|
4 holoes Ø3,2
|
• Distance between holes axes
|
15x 210 mm
|
• Connection of secondary
|
MOLEX 5045-04AG
|
Remarks
|
|
VOUT is positive when IP flows in the direction of the arrow.
|
|
The return busbar and primary conductor elbow must be ●●located at least at 2.5 x window length more far away from the transducer case.
|
|
Temperature of the primary busbar cannot exceed 90°C.
|
|
Dynamic performances are best with a primary busbar completely filling the primary aperture.
|
![]() |
![]() |
