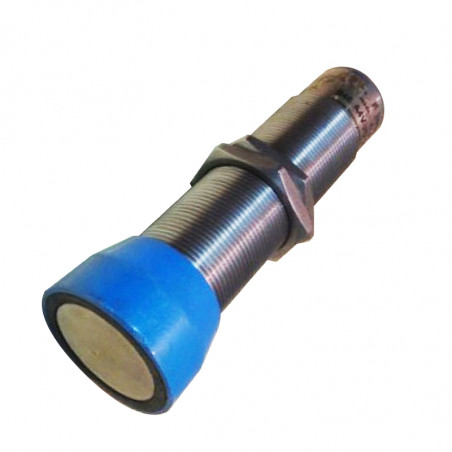

Ultrasound sensors with 946 series function
  • Ultrasound sensors with 946 series function

Photos are for informational purposes only. View product specification

Manufacturer: Honeywell

Ultrasound sensors with 946 series function

Ultrasound sensors with 946 series function



Technical data:
• Beam angle:: 5°
• Repeatability: < 0,1 %
• Power supply: 10...30V
• IP: IP65
  M30 x 1,5 mm , stainless steel
• Connection: M12 connector

TypeReaction timeMax measuring rangeMin. measuring rangeDimensions figure number
Voltage(0...10V) and current(4...20 mA) analogue output
946-A4V-2D-2C0-380E 21 ms 500 mm 30 mm i
946-A4V-2D-2C0-175E 65 ms 2000 mm 80 mm 1
946-A4V-2D-2C0-85E 145 ms 4000 mm 200 mm 2
946-A4V-2D-2C0-65E 285 ms 6000 mm 3500 mm 3
2 switch over outputs PNP NO
946-A4V-2D-001-400E 65 ms 500 mm 50 mm 1
946-A4V-2D-001-175E 195 ms 2000 mm 120 mm 1
946-A4V-2D-001-65E 850 ms 6000 mm 400 mm 3

Figure 1[mm]
Figure 2[mm]
Figure 3[mm]
