Manufacturer: KEMET

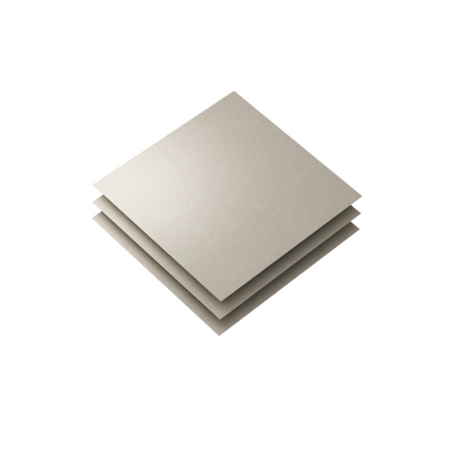

FF1 absorbing mat

Type FF1 (AEC-Q200)
Effective frequency Up to 10 GHz
Operating temperature -40 ÷ 105 ℃
Thickness [mm] 0,05 0,1 0,2 0,3
Specific gravity 3.1
Surface resistivity [Ω/□] 1.0 x 106
Approved standard UL94 V-0 (E176124)
Enviroment RoHS compliant, Halogen free/PVC free/Lead free/Red Phosphorus free
Reflowing (260 ℃) Please use double sided tape with reflowing



Standard dimensions





Permeability at 3MHz





Decoupling characteristics at 700MHz
