FPAL- Non-Metallic Conduits – Light weight nylon (PA6) corrugated flexible conduit
  • FPAL- Non-Metallic Conduits – Light weight nylon (PA6) corrugated flexible conduit

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FLEXICON

Peszel FPAL - light flexible flexible pezel from nylon (PA6)

FPAL- Non-Metallic Conduits – Light weight nylon (PA6) corrugated flexible conduit

Peszel FPAL – lekki elastyczny karbowany peszel z nylonu (PA6)

Properties:
Material Nylon PA6
Colour: Black Grey (RAL 7031)
Fire Performance: Self extinguishing, halo-gen, sulphur and phos-phorous free
Temperature Performance:
• Static -40OC +120OC
• Dynamic -20OC +100OC
IP Rating:
• IP66 with FPA fittings
• IP66+67+68+69K with FPAX fittings
Compression Strength: 60kg/100mm
Pull-off (Tensile) strength : 30kg FPA [&] FPAX fittings
20kg FLK fittings

Typical Applications

Peszel FPAL – lekki elastyczny karbowany peszel z nylonu (PA6)Peszel FPAL – lekki elastyczny karbowany peszel z nylonu (PA6) zastosowanie maszyny Machinery and OEM’s Peszel FPAL – lekki elastyczny karbowany peszel z nylonu (PA6) zastosowanie konstrukcje Construction

Compliance, Approvals [&] Accreditation
Peszel FPAL – lekki elastyczny karbowany peszel z nylonu (PA6) certyfikaty
EN 61386 Classification Available on request

File No. E229161

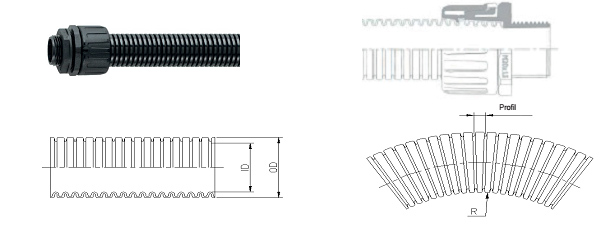

Nominal Size Pitch
F= fine
C= coarse		 Part No Reel Length
[m]		 OD
[mm]		 Min ID
[mm]		 Min inside Bend
radius R
[mm]		 Compression
Strength
kg/100mm		 Weight
[g/m]
10 F

FPAL10#

 50 10.0 6.5 15 80 18
11 F

FPAL11#

 50 11.5 8.4 20 50 22
13 F

FPAL13#

 50 13.0 9.8 25 50 24
16 F

FPAL16#

 50 15.8 11.8 35 50 36
18 F

FPAL18#

 50 18.5 14.2 35 60 46
20 C

FPAL20#

 50 20.0 15.0 40 60 50
21 F

FPAL21#

 50 21.2 16.7 40 60 56
25 C

FPAL25#

 50 25.0 19.3 45 60 70
28 F

FPAL28#

 50 28.5 23.0 45 55 90
34 C

FPAL34#

 50 34.5 28.1 55 55 110
42 C

FPAL42#

 25 42.5 35.5 65 50 150
54 C

FPAL54#

 25 54.5 47.2 80 50 200
67 C

FPAL67#

 10 67.2 56.5 110 55 310

NB: # add B for Black or G for Gre
