Manufacturer: TEP Ex

EX series RK boxes made of polyamide - standard configuration

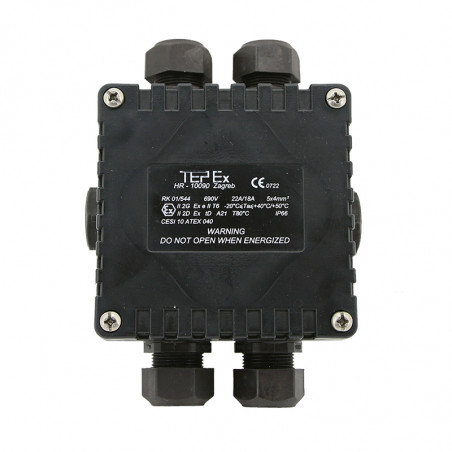

EX RK Series Polyamide Junction Boxes / Standard Configuration


Technical Data

Material: PA glass fiber reinforced polyamide
Color: Black, RAL 9005
Protection Rating: IP66
Seal: silicone
Screws: Stainless steel
Operating temperature: -20°C - +40°C or +50°C
-40°C - +50°C with special cable glands
-40°C - +70°C for Exi, with special cable glands
Certificate: II 2G Ex e[ia/ib] IIC T6
II 2D Ex tD A21 IP66 T80°C
Electrical parameters of connectors: RK01/744,RK01/544
RK01/544E
RK01/514
RK01/516		 Ta ⇐ 40C 22A
Ta ⇐ 40C 18A
Ta ⇐ 40C 20A, Ta ⇐ 50C 16A
Ta ⇐ 40C 25A, Ta ⇐ 50C 20A
1.5 mm2 – 16A, 2.5 mm2 – 20A, 4 mm2 – 25A, 6 mm2 – 32A
Gland choke ranges: M25 – cable Ø 6-15 mm, M32 – cable Ø 21-21 mm


Dimensions




Order details


Type Drawing Glands Number of bus connectors Wire cross-section
RK 01/514 Gland 4 x M25
for cable Ø6-15mm,
2 x M25 plug		 5 - 1 x 4 mm2
(L1, L2, L3, N, PE)		 1 x 0.5...4 mm2
2 x 0.5...2.5 mm2
RK 01/514 Ex I 15 - 1 x 4 mm2
(blue 1-5)
RK 01/516 5 - 1 x 6 mm2
(L1, L2, L3, N, PE)		 1 x 1.5...6 mm2
2 x 1.5...4 mm2
RK 01/544 Gland 6 x M25
for cable Ø6-15mm		 5 - 4 x 4 mm2 4 x 4 mm2
6 x 2.5 mm2
1 x 4 mm2 + 2 x 2.5 mm2 + 3 x 1.5 mm2
1 x 4 mm2 + 5 x 1.5 mm2
2 x 4 mm2 + 3 x 2.5 mm2
RK 01/744 7 - 4 x 4 mm2
RK 01/544-E 2 x M32
glands for armored cable
Ø 23-32mm
4 x M25
cable glands for armored cable
Ø 17-23mm		 5 - 4 x 6 mm2

Note: Minimum order: 14 pcs.
