Manufacturer: KIRA Leuchten

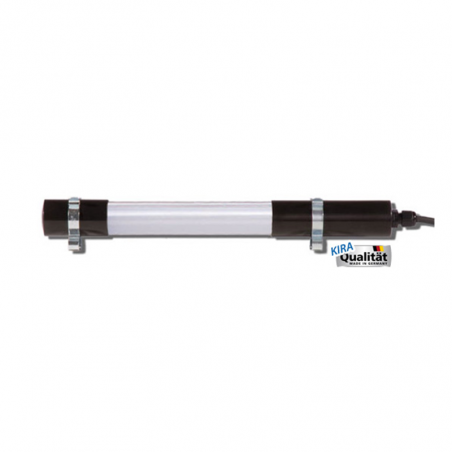

KE-LED-EA 3003-P (long) | LED fluorescent lamp

Due to its compact length, the KE-LED-EA 3003-P can be used virtually anywhere in any machine or system as an illumination solution without an external ballast. The robust luminaire (IP54 [&] impact-resistant polycarbonate protective tube) creates a glare-free working light thanks to a special prism protection tube. By means of the spring steel clamps included in the scope of delivery, the luminaire can be installed quickly and easily and the illumination can be adjusted optimally.

Technical Data KE-LED-EA 3003-P long
Illuminant 3 POWER LEDs /5000 Kelvin
Power 3 W
Luminous flux ca. 350 lumenów
Voltage 230V / 110V / 42V / 24V / 12V
Protective tube polycarbonate, 30 mm Ø
Diffusor special prism protective tube
End caps ABS, black
Fixing clamps 2 fixing clamps made out of steel
Cable 5 m H05RN-F 2 x 1,0 mm2 (other lengths on request)
Plug without
Protection (IP) IP54
Protection class II/III
Length / Weight 315 mm / 0,5 kg
Ambient temperature range -10°C - +40°C

Type Quantity
POWER LED		 Voltage Amp. Plug Weight Art.-No.
KE-LED-EA 3003-P / 230 3 230 V AC 0,035A Konturen- 0,5 kg 131625
KE-LED-EA 3003-P / 100 3 110 V AC / DC 0,060A ohne 0,5 kg 131626
KE-LED-EA 3003-P / 42 3 42 V AC / DC 0,085A ohne 0,5 kg 131627
KE-LED-EA 3003-P / 24 3 24 V AC / DC 0,170A ohne 0,5 kg 131628
KE-LED-EA 3003-P / 12 3 12 V AC / DC 0,280A ohne 0,5 kg 131628


Type Dimensions in mm
a b c d e f
KE-LED-EA 3003-P 315 60 150 107 30 20


2 fixing clamps included in the scope of delivery
