LA 55-P current transducer
LA 55-P current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

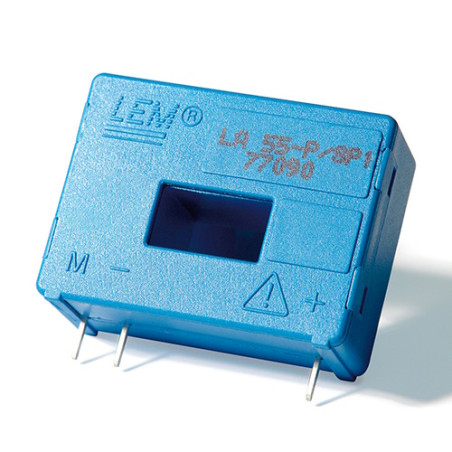

LA 55-P current transducer

  • LA 55-P
  • Accuracy 0.65
  • Rated Current [A] 50
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] ±12…15
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 200
  • Feedback loop [open / closed] // Eta technology closed

LA 55-NP Current Transducer

Photo:

No photo available

Description:

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between the primary and secondary circuits.

Main Features:

  • Closed-loop (compensated) current transducer using the Hall effect
  • Insulated plastic housing according to UL 94-V0
  • Excellent accuracy
  • Very good linearity
  • Low temperature drift
  • Optimized response time
  • Wide bandwidth Transfer
  • No insertion losses
  • High immunity to external interference
  • Capacity of current overload

Applications:

  • Variable speed AC drives and servo motors
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Power supplies for welding applications

Technical data:

Parameter Value
Rated RMS Primary Current 50A
Primary Current Measurement Range 0…±70A
Resistance Measurement at: TA=70°C TA=85°C
RM min RM max RM min RM max
±12V ±50Amax 10Ω 100Ω 60Ω 95Ω
±70Amax 10Ω 50Ω 60Ω 60Ω
±15V ±50Amax 50Ω 160Ω 135Ω 155Ω
±70Amax 50Ω 90Ω 135Ω 135Ω
Rated Secondary Current RMS 50mA
Turbo Transformer Ratio 1:2000
Supply voltage (±5%) ±12…15V
Current consumption at ±15V 10 + ISmA
Error at IPN, TA=25°C ±15V (±5%) ±0.65%
±12…15V (±5%) ±0.90%
Frequency response (-1dB) DC…200kHz
Operating temperature -40÷85°C
Storage temperature -40÷90°C
Secondary winding resistance at: TA=70°C 80Ω
TA=85°C 85Ω
Weight 18g
Less
Read more
118.08 PLN
118.08 PLN Gross price / pcs.
96.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 30
1 - 2 Business Days Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Accuracy 0.65
  • Rated Current [A] 50
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] ±12…15
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 200
  • Feedback loop [open / closed] // Eta technology closed

LA 55-NP Current Transducer

Photo:

No photo available

Description:

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between the primary and secondary circuits.

Main Features:

  • Closed-loop (compensated) current transducer using the Hall effect
  • Insulated plastic housing according to UL 94-V0
  • Excellent accuracy
  • Very good linearity
  • Low temperature drift
  • Optimized response time
  • Wide bandwidth Transfer
  • No insertion losses
  • High immunity to external interference
  • Capacity of current overload

Applications:

  • Variable speed AC drives and servo motors
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Power supplies for welding applications

Technical data:

Parameter Value
Rated RMS Primary Current 50A
Primary Current Measurement Range 0…±70A
Resistance Measurement at: TA=70°C TA=85°C
RM min RM max RM min RM max
±12V ±50Amax 10Ω 100Ω 60Ω 95Ω
±70Amax 10Ω 50Ω 60Ω 60Ω
±15V ±50Amax 50Ω 160Ω 135Ω 155Ω
±70Amax 50Ω 90Ω 135Ω 135Ω
Rated Secondary Current RMS 50mA
Turbo Transformer Ratio 1:2000
Supply voltage (±5%) ±12…15V
Current consumption at ±15V 10 + ISmA
Error at IPN, TA=25°C ±15V (±5%) ±0.65%
±12…15V (±5%) ±0.90%
Frequency response (-1dB) DC…200kHz
Operating temperature -40÷85°C
Storage temperature -40÷90°C
Secondary winding resistance at: TA=70°C 80Ω
TA=85°C 85Ω
Weight 18g
Less
Read more
