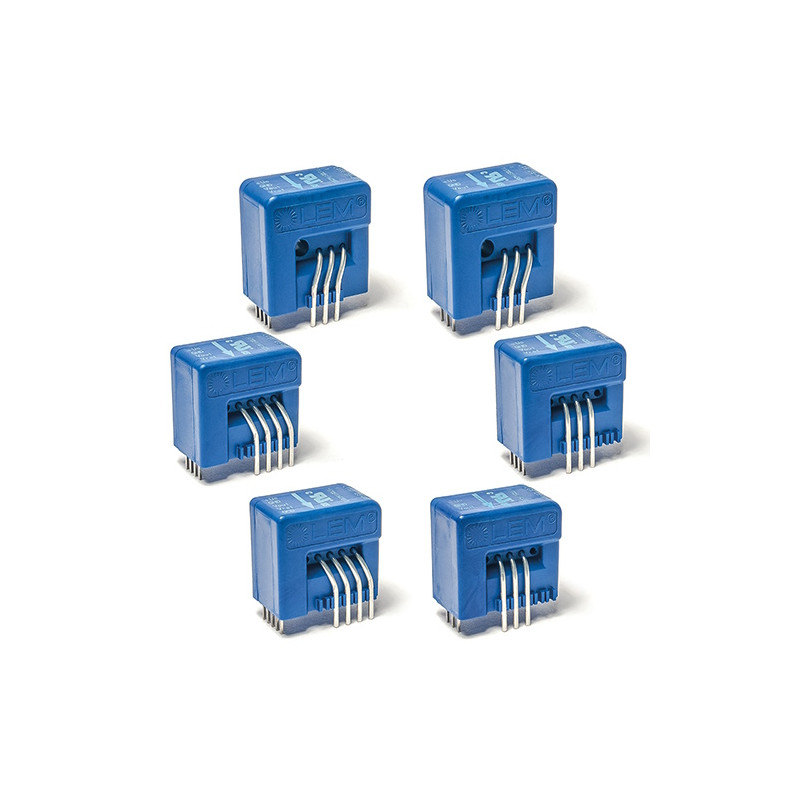

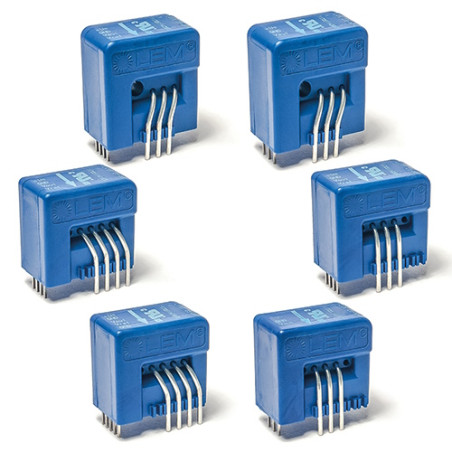

LES 15-NP current transducer
LES 15-NP current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

LES 15-NP current transducer

  • LES 15-NP
  • Accuracy 0.5
  • Rated Current [A] 15
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 5
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 105
  • Frequency response (-3dB) [kHz] 300
  • Feedback loop [open / closed] // Eta technology closed

Description

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between primary and secondary circuits.

Main Features

  • Multi-range closed-loop current transducer
  • Voltage output
  • Unipolar supply voltage
  • Compact design for PCB mounting
  • Very low offset drift
  • Very good dv/dt immunity
  • CAS compatible

Applications

  • AC variable speed drives and servo motors
  • Static converters for DC motor drives
  • Applications Battery-powered
  • Uninterruptible Power Supplies (UPS)
  • Switched-Mode Power Supplies (SMPS)
  • Power Supplies for Welding Applications
  • Solar Inverters

Technical Data

Parameter Value
Maximum Supply Voltage 7V
Maximum Primary Conductor Temperature 110°C
Maximum Primary Current Steady State 20xIpn
Maximum Electrostatic Discharge Voltage (HBM) 4kV
Secondary Power Supply Voltage 7V DC
Output Voltage 0÷5V
Ambient Operating Temperature -40÷105°C
Temperature Storage Temperature -55÷125°C
Weight 10g
Primary Rated Current 15A
Primary Current Measuring Range -51÷51A
Supply Voltage 5V
Output Voltage (for primary current Ip=0) 2.5V
Offset Voltage Electrical -19.8÷19.8mV
Electrical offset current with respect to primary current -190÷190mA
Theoretical sensitivity 41.67 mV/A
Sensitivity error -0.2÷0.2%
Less
Read more
67.65 PLN
67.65 PLN Gross price / pcs.
55.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 69
1 - 2 Business Days Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Accuracy 0.5
  • Rated Current [A] 15
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 5
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 105
  • Frequency response (-3dB) [kHz] 300
  • Feedback loop [open / closed] // Eta technology closed

Description

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between primary and secondary circuits.

Main Features

  • Multi-range closed-loop current transducer
  • Voltage output
  • Unipolar supply voltage
  • Compact design for PCB mounting
  • Very low offset drift
  • Very good dv/dt immunity
  • CAS compatible

Applications

  • AC variable speed drives and servo motors
  • Static converters for DC motor drives
  • Applications Battery-powered
  • Uninterruptible Power Supplies (UPS)
  • Switched-Mode Power Supplies (SMPS)
  • Power Supplies for Welding Applications
  • Solar Inverters

Technical Data

Parameter Value
Maximum Supply Voltage 7V
Maximum Primary Conductor Temperature 110°C
Maximum Primary Current Steady State 20xIpn
Maximum Electrostatic Discharge Voltage (HBM) 4kV
Secondary Power Supply Voltage 7V DC
Output Voltage 0÷5V
Ambient Operating Temperature -40÷105°C
Temperature Storage Temperature -55÷125°C
Weight 10g
Primary Rated Current 15A
Primary Current Measuring Range -51÷51A
Supply Voltage 5V
Output Voltage (for primary current Ip=0) 2.5V
Offset Voltage Electrical -19.8÷19.8mV
Electrical offset current with respect to primary current -190÷190mA
Theoretical sensitivity 41.67 mV/A
Sensitivity error -0.2÷0.2%
Less
Read more
