PR600 series

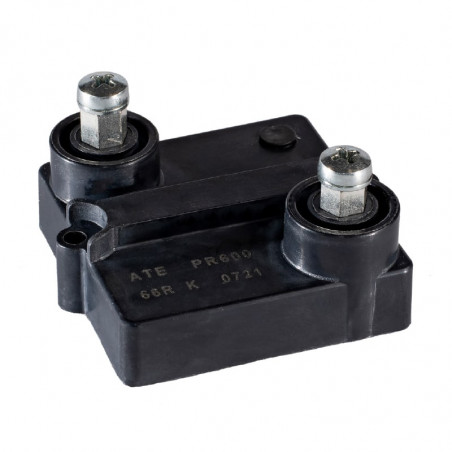

PR600

Very good ratio Power / Volume
Easy mounting and wiring with significant cost advantages.
Non inductive performance for high frequency applications.
One models for power applications up to 600W.
Suited to UL94-V0 application.



Characteristics
Power rating: 600W @ 85°C Bottom case Temperature
For power greater than 600W please
consult Technical Dept.
Resistance range: from 1R0 to 1M0
Resistance Values: E12 series
For out of range or not std. values
please contact ATE Electronics Technical Dept.
Tolerance (Code): Standard ±10%.
Available on request up to ±1%
Temperature coefficient: ±150 ppm/°C
Maximum working voltage 5000 Vac
Working temperature range From -55°C to +155°C
Dielectric Strength: 7000 Vac (12000 Vac x PR254T)
Insulation resistance: > 105 MOhm at 500V
Creep distance: 42 mm (65 mm x PR250T)
Air gap distance: 16 mm (29mm x PR250T)
Partial discharge: < 10 pC @ 5000 Vac
Self inductance: 80 nH
Parallel capacitance: 40 pF
Capacitance to heatsink: < 120 pF
Overload : 4 Pn x 10 s
Thermal resistance: 0.15 °C/W
Heatsink flatness: 0.05 mm Max
Heatsink surface finish: 6.3 μm Max
Thermal grease: Required
 Max torque for contacts: 2Nm (static)
 Max torque for mounting: 2Nm (static)
 Weight: 125 g (155 g x PR254T)
Options: Cable terminals PR254C / PR254TC
