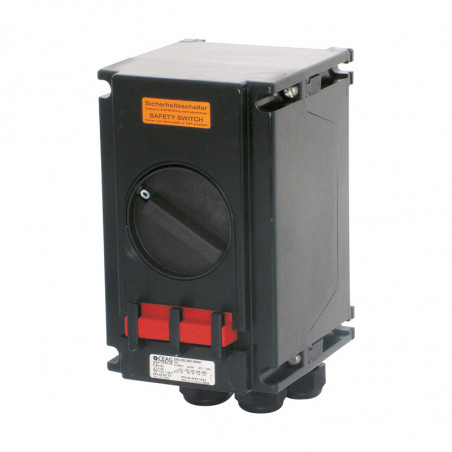

Safety switch for explosion-proof 40 A
Safety switch for explosion-proof 40 A
Safety switch for explosion-proof 40 A
Safety switch for explosion-proof 40 A

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Eaton / CEAG

Safety switch for explosion-proof 40 A

Technical Specifications

Technical Data
Marking according to 94/9/EC (ATEX)
EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking according to IECEx
Permissible Ambient Temperature
Rated Voltage
Rated Current
Frequency
Rated Switching Capacity
AC-3 and Insulation according to standard
EN 60947-3

Backup Fuse


Connection Terminals

Degree of Protection according to EN 60529
Protection Class
Gland/Housing Openings


Weight


Housing material

Housing color
Auxiliary contact



Locking		 D II 2G Ex ed ia IIC T6 / D II 2D Ex tD A21 IP66 T80°C
PTB 99 ATEX 1161
BKI 07.0012
Ex ed ia IIC T6, Ex tD A21 IP66 T53°C
-20°C to +40°C1)
max. up to 690 V
max. 20 A
50/60 Hz
Ue 230 V / Ie 40 A
Ue 400 V / Ie 40 A
Ue 500 V / Ie 40 A
Ue 690 V / Ie 32 A
up to 400 V AC 80 A gL
up to 500 V AC 80 A gL
up to 690 V AC 63 A gL
Main contact: 2 x 4 mm2
Auxiliary contact: 2 x 0.5-2.5 mm2
IP66
I
M25 (d = 8-17 mm) see order details
M32 (d = 12-21 mm) see order details
/>option: metal flange with threaded entry
3-pole: approx. 2.30 kg
4-pole: approx. 2.75 kg
6-pole: approx. 6.50 kg
glass-fibre reinforced polyester
stainless steel distribution box, powder-coated
black
1 x NO lagging switch; leading switch
1 x NC (6-pole version only) leading switch
Delayed switch
can be locked in the "OFF" position
with three commercially available locks.

1) Other ambient temperature ranges are available upon request.

Dimensions [mm]

Accessories

Mounting plate for 3-pole 40 A explosion-proof safety switch2)
Type Application Mounting method Product No.
Size 3 Wall-mounted Push-in GHG 610 1953 R0118
Size 3 Bracket-mounted Push-in GHG 610 1953 R0110
Size 3 truss mounting push in GHG 610 1953 R0118
Mounting plate for 6-pole 40 A explosion-proof safety switch
Type Application Mounting method Product number
Size 3 2 x pole mounting Screwing1) GHG 610 1953 R0110
Mounting Plate Accessories
Type Pieces per Package Product Number
Label for label holder and mounting plates size 4 and size 5 10 GHG 610 1953 R0011
Label holder cap size 4 and size 5
1 set = 1 each		 10 GHG 610 1953 R0134
Mounting clip for CEAG devices with 5.5 mm and 11 mm mounting feet
1 set = 4 pcs. each		 10 GHG 610 1953 R0041
Installation kit for 1” pipes (Ø 27-30 mm) for pipe mounting 10 GHG 610 1953 R0020
Mounting plate accessories
Type Application Pieces per package Product number
Size 4 for mounting plates size 4 1 GHG 610 1955 R0107

The products are delivered in sets listed in the tables.

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in
