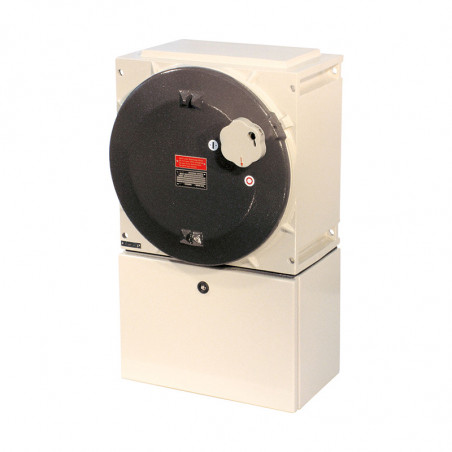

Safety switch in explosion-proof 400 A
Safety switch in explosion-proof 400 A
Safety switch in explosion-proof 400 A

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Eaton / CEAG

Safety switch in explosion-proof 400 A

Technical Specifications

Marking according to 94/9/EC (ATEX)
EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking according to IECEx

Permissible Ambient Temperature
Rated Voltage
Rated Current
Frequency
Rated Switching Capacity
AC-3 and Insulation according to standard
EN 60947-3

Backup Fuse


Connection Terminals

Degree of Protection according to EN 60529
Protection Class
Glands/Housing Openings


Weight
Material Housing

Housing color

Auxiliary contact

Locking		 Ex II 2G Ex de IIC T6, T5 or T41) / Ex II 2D IP66 T80°C/T95°C
PTB 99 ATEX 1057
BKI 06.0006
Ex de ia/ib [ia/ib] IIC T6, T5 or T4
Ex tD A21 IP66 T80°C, T95°C or T130°C
-20°C to +40°C2)
max. up to 690 V
max. 400 A
50/60 Hz
Ue 230 V / Ie 400 A
Ue 400 V / Ie 400 A
Ue 500 V / Ie 400 A
Ue 690 V / Ie 400 A
up to 400 V AC 500 A gL
up to 400 V AC 500 A gL
up to 500 V AC 500 A gL
Main contact: 6 x 150 mm2/2 x 95 mm2
Auxiliary contact: 2 x 4 mm2
IP54 (IP65 optional)
I
M25 (d = 8-17 mm) see details orders
M63 (d = 27-48 mm) see order details
option: metal flange with 2 threaded inlets
approx. 64.5 kg
aluminum, powder-coated polyester
switchboard made of steel, powder-coated
housing: gray (RAL 7032)
cover: dark gray (RAL 7022)
1 x NO making delay; breaking early
1 x NC making early; Delayed switch-off
can be locked in the "OFF" position
with three commercially available locks.

1) Also available for IIB.
2) Other ambient temperature ranges are available on request.

Version Cable entries Product No.
3-pole safety switch 400 A
Version with 2 auxiliary contacts (1 x NO; 1 x NC)
3-pole 4 x M63 / 1 x M25 EXKO 731713 U0001
3-pole emergency stop 4 x M63 / 1 x M25 EXKO 731723 U0001

Customized version available upon request, Ex ia auxiliary contacts available.

Dimensions [mm]
