Straight resistant mini sensor ACT-26
  • Straight resistant mini sensor ACT-26

Photos are for informational purposes only. View product specification

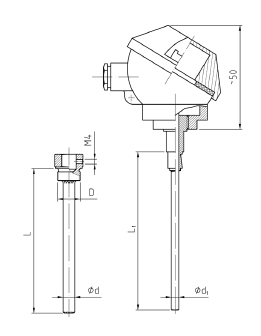

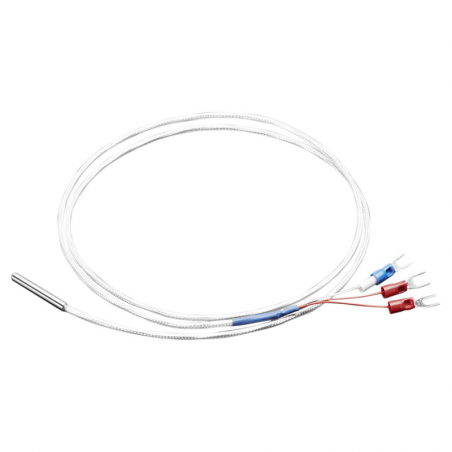

Straight resistant mini sensor ACT-26

Mini straight resistant sensor used for precise liquid and gas mediums temperature measurement. Temperature range -50°C - +250°C. Protection shields made from steel 1.4571 allows for aggressive media measurement. Sensor is placed in additional shield and assembled with screw.

SPECIFICATION:
TypeExecution
ACT-21 Normal
ACT-21/EXI Spark safe
SENSOR TECHNICAL PARAMETERS
VersionCharacteristicMeasurement resistorMeasurement rangeAccuracy classMax measurement currentConnection type
normal
shockproof
according to PN-EN-60751 1xPt100, 2xPt100 from -50°C
up to +250°C
B 8 mA 2 cables
1xPt100 A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA

Shield
diameter
d[mm]

material according to
WNr/ DIN

material according to
ASTM /AISI

length
L[mm]

Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary

Additional shield
diameter
d[mm]

material according to
WNr/ DIN

material according to
ASTM /AISI

length
L[mm]

Stub pipe thread

Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary M20x1,5 G1/2” G3/4” G3/8”

Connection head
TypeMax operation temperatureMaterial
MA +100O AL
Max operation pressure
1,6MPa



Marking:
A. Execution
A

normal
-
  Spark safe /Exi
B. Resistor type
B
  Single 1xPt100
  Double 2xPt100
C. Accuracy class
C

B
B

A
A

1/3 B DIN
1/3 B DIN
D. Connection type


2 - cables
2p

3 - cables
3p

4 - cables
4p
E. Sensor shield diameter d
E

Ø6
6
F. Shield immersion length L1
E

L1
give in mm
G. Additional shield diameter d
F

Ø6
8
H. Additional shield material
G

1.4571
1.4571
I. Stub pipe thread D
H

M20x1,5
M20x1,5

G1/2"
G1/2

G3/4"
G3/4

G3/8"
G3/8"
J. Additional shield length L
I

LK
give in mm
K.Sensor type
K

normal
Z

shockproof
W
