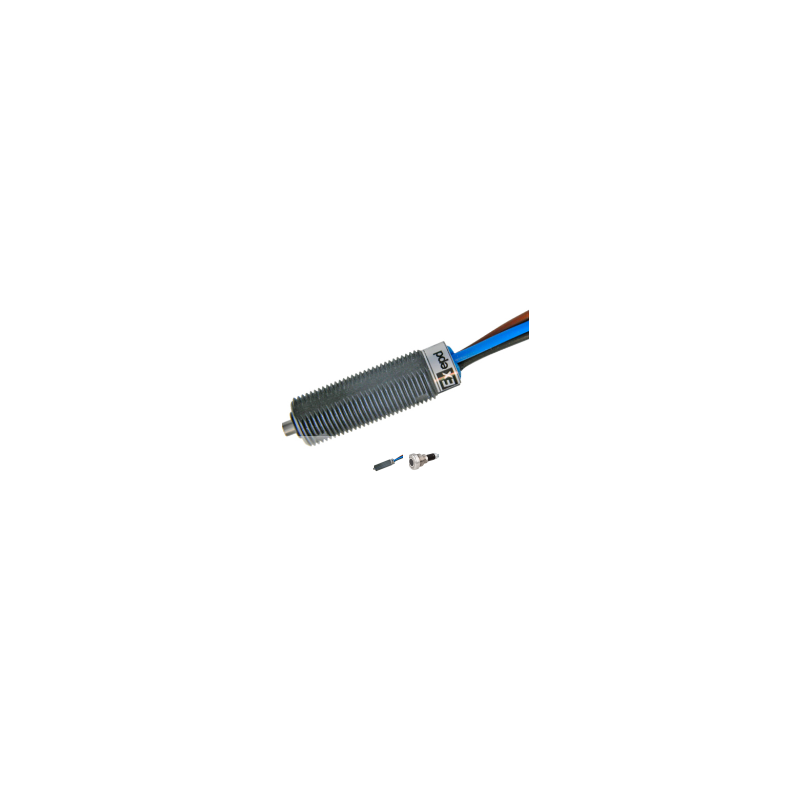

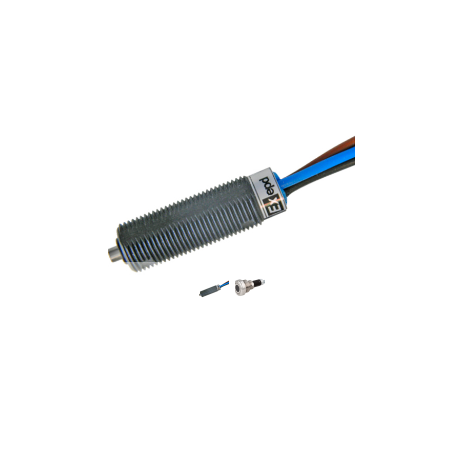

Microswitch Ex d M12 Type AS1

  • AS1
  • Power supply
  • ATEX

Technical Specifications

200,000 operations
Housing Material: Glass-fiber reinforced polyamide
Explosion Protection Type: II 2G Ex d IIC T6 Gb
EU-Type certificate: BVS 16 ATEX E 086 X
Ambient temperature range (Tamb.):
Up to 4 A: –20°C ... +60°C
Up to 1 A: –20°C ... +40°C
Switch contact: 1 changeover contact (CO / change-over)
Mechanical durability:
Version: M12x1 cylindrical housing
Length: 38 mm (without actuator)
With cable: 3 x 0.5 mm²
Protection level: IP 54

Contact element

250 V AC 4 A / AC-14
Switching voltage (AC):
Switching current (AC):
  5 A / AC-12

  1 A / AC-13/15
Switching voltage (DC): 24 V DC
Switching current (DC):
    2 A / DC-12
    4 A / DC-14
    0.6 A / DC-13

Operating parameters

Toggle strength: 1.7 N
Electrical durability: 200,000 cycles
Contact material: Gold-plated silver
Switching frequency: max. 5 Hz
Vibration resistance (50 Hz): according to EN 60068-2-6

Wire colors / contact assignments

  • 1 (brown) → COM (common)
  • 2 (black) → NC (normally closed)
  • 4 (gray) → NO (Normally Open)

"Non-Ex" version also available.

Product Description

M12 cylindrical microswitches are used in potentially explosive atmospheres as position switches or as an additional safety element. Thanks to its compact housing and durability, the M12 type is ideal for many industrial applications.

The housing with an M12x1 thread allows for precise positioning, and the switch can be mounted directly into standard M12 inductive sensor holes.

Standard versions

  • For direct mounting on machines
    • With 3 x 0.5 mm² cable, 3 m
    • Item no.: 500027
  • For mounting inside Ex d-certified enclosures
    • With 3 x 0.5 mm² cable, 1 m
    • Item no.: 500026

Scope of delivery:

  • Switch with two M12 PA nuts
  • (Other cable lengths available upon request)

Design features

  • Precise position adjustment thanks to M12x1 thread
  • Actuator can be mounted directly or separately, can be completely concealed
  • Element made of corrosion-resistant stainless steel
  • Actuator is non-magnetic (does not affect inductive sensors)
  • Halogen-resistant cable, compliant with DIN VDE 0293-308
  • Wire color code: H05V-K 3 x 0.5 mm²
  • Wires with ferrules
  • Gold-plated contacts – suitable for low-voltage operation
  • Suitable for mounting in standard M12 sensor holes
Less
Read more
