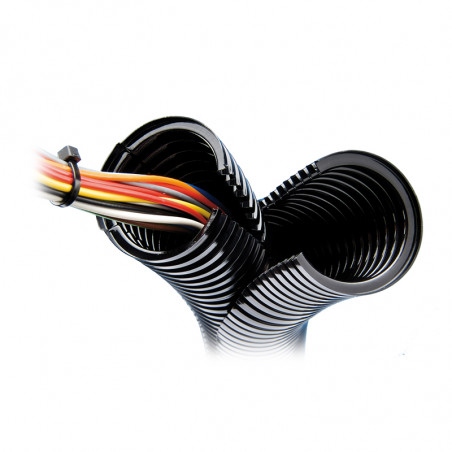

Protective pipes Co-flex PA-V0
  • Protective pipes Co-flex PA-V0

Photos are for informational purposes only. View product specification

Protective pipes Co-flex PA-V0

Technical data

Preferences

Material
PA 6 - VO
Max operation temperature
3000 h 120 OC

500 h 155 OC
Min operation temperature
-40OC
Flammability class
UL94 V0
Non halogen
yes
Material declaration needed
no
other informations

Chemical resistance:

Fuels, Mineral oils, grease, dis solvents.

Dimensions

product number black colourcut product number grey colourNominal diameter NWØ - I
[mm]
Ø - A
[mm]
415-006-30 request 6 6,3 10
415-010-30 request 10 8,8 13,5
415-011-30 request 11 11 16,1
415-014-30 request 14 13,2 18,7
415-016-30 request 16 16 21,5
415-020-30 request 20 20,2 25,7
415-023-30 request 23 23,9 31,3
415-029-30 request 29 27,3 35,5
415-037-30 request 37 32,5 43,2
415-045-30 request 45 43,1 54,2
415-070-30   70 67 79,8
