Manufacturer: Norgren

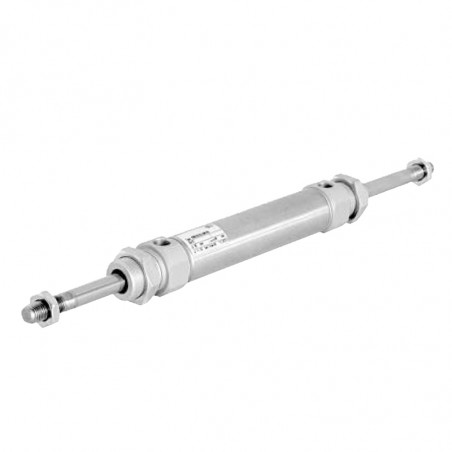

Round actuators (ISO)

RM/8000
Double Acting, ISO 6432
ø 10 do 25 mm

Magnetic piston as standard
Conforming to ISO 6432
Corrosion resistance
Buffer or adjustable cushioning
Nose mounting nut and piston rod locknut as
standard

Technical Data
Medium:
Compressed air, filtered, lubricated or non-lubricated
Operation:
Double acting with buffer or adjustable cushioning
Operating Pressure
1 - 10 bar
Operating Temperature
-10°C - +80°C max.
Materials
Barrel:
Stainless steel (Austenitic)
End covers:
Clear anodised aluminium alloy
Piston rod
Stainless steel(Austenitic)
Buffer:
polyurethane
Wiper:
polyurethane
Seals:
Nitrile rubber


  Piston rod Terminal Catalogue number Magnetic
Ø
12 6 M5 RM/8012/M/*
16 6 M5 RM/8016/M/*
20 8 G1/8 RM/8020/M/*
25 10 G1/8 RM/8025/M/*
Standard steps

(damped on buffes)
Ø 10 25 40 50 80 100 125 160 200 250
10 O ● O • • •
12 O • O • • • O O O
16 O • O • • • O O O
20 O • O • • • O O O O
25 O • O • • • O O O O

(regulated amortisation)
Ø 25 40 50 80 100 125 160 200 250
16 O O O O O O O O
20 O O O O O O O O O
25 O O O O O O O O O


Limit switches


  Nr kat. kabel z wtyczką
Reed M/50/LSU/*V M/50/LSU/CP M/P73001/5 (5 m)
induction M/50/EAP/*V M/50/EAP/CP IWP73001/5 (5 m)
*Insert cable length- 2, 5 or10 m.

Options
*
Special Variants
Wstaw
Heat resistant seals, 150°C max.
T
RM/8
***/
Cylinder diameter
Variants with buffer cushioning
Insert
10
010
12
012
16
016
20
020
25
025
Cylinder Diameters (mm)
Variants with adjustable cushioning
Insert
16
017
20
021
25
026
**/
Options##
inserts
Central rear port
MC
Flat rear cover
MF
Non-rotating piston rod
N2
Double ended piston rod
JM
Locking
L4
Extended piston rod
Mu
RM/8***/MU/***/***

                             ^----->
Wydłużenie(mm)
***
Step(mm)
500 max.
Uwaga: Pomiń pozycje nie używanych opcji.W sprawie kombinacji kilku opcji skontaktuj się znaszym Działem Technicznym.## Dla tłoka magnetycznego
Cylinder diameter
Variants with buffer cushioning
Insert
10
010
12
012
16
016
20
020
25
025
Cylinder Diameters (mm)
Variants with adjustable cushioning
Insert
16
017
20
021
25
026
Less
