Manufacturer: EMC Prima

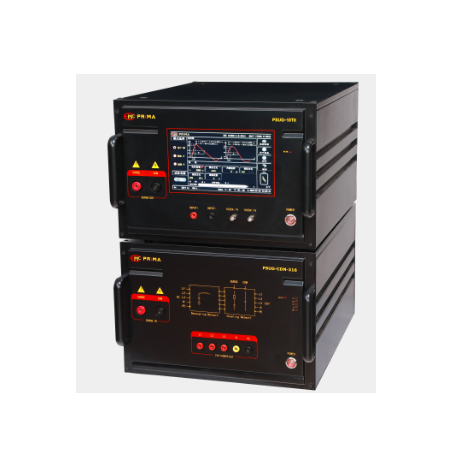

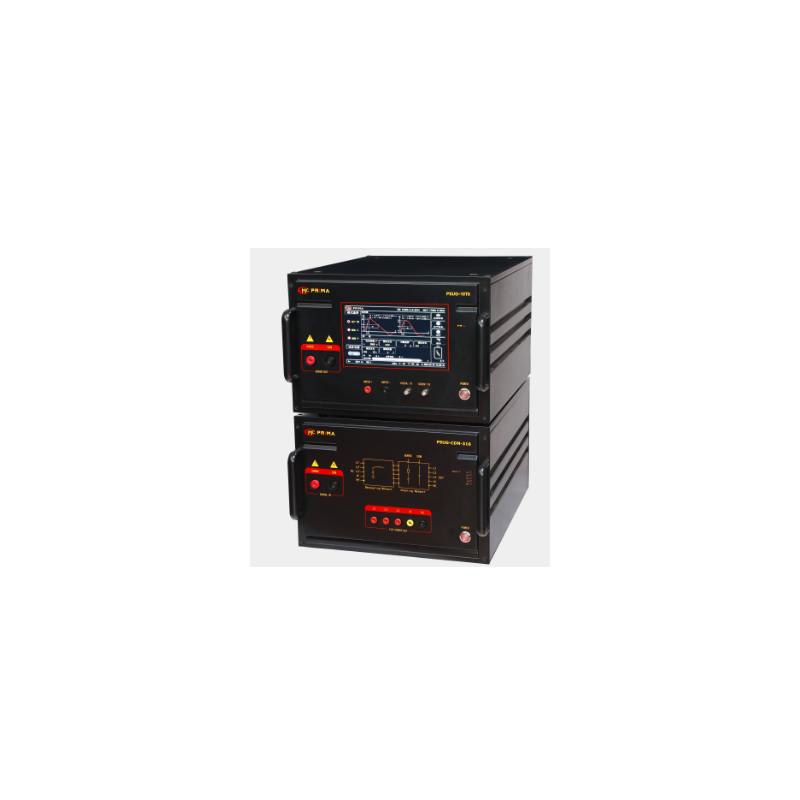

Surge simulator PSUG-10T0-CDN-316

  • PSUG-10T0-CDN-316

PSUG-10T0-CDN-316 is an advanced surge simulator, specifically designed to meet electromagnetic compatibility (EMC) requirements for surge immunity testing (SUG). This device is used to evaluate the performance of power cables and internal connections in electrical and electronic devices that may be exposed to high-energy transient interference from circuit switches or natural lightning strikes.

Device Features:

  • Supports multi-channel testing
  • Free switching of positive and negative polarity
  • One-button Chinese and English language switching
  • Built-in parameters compliant with international standards
  • High-quality build quality and durability
  • Maximum test voltage up to 8000V
  • 10.1-inch color touchscreen
  • Built-in temperature, humidity, time measurement, and real-time high-voltage display
  • Asynchronous phase angle or adjustable within the 0~360° range
  • Automatic switching of the full-speed surge test mode
  • Built-in RJ45 interface, remote control capability (optional)
  • Built-in differential high-voltage probe and current transformer for waveform measurement

Compliance with standards:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41 / C62.45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45

Parameters:

200V ~ 10000V 10%
Parameter Value
Model PSUG-10T0
Open circuit voltage
Voltage Resolution 1 V
Rise Time (Pulse 1) 1.2 µs 30%
Duration 50 µs 20%
Short Circuit Current 100 A ~ 5000 A ±10%
Rise Time 8 µs ±20%
Duration 20 µs ±20%
Output Polarity +, -, +/-, -/+
Output Impedance 2 Ω
Step Voltage Range 0 ~ 8000V
Time Interval Between Pulses 5 s ~ 9999 s
Number of Pulses Test 1c ~ 60000c
Trigger mode Manual, external, interval
Phase synchronization 0° ~ 359° (50 Hz or 60 Hz) (Synchronous/Asynchronous)

CDN:

Parameter Value
CDN type External CDN – CDN-316
Coupling Three-phase, five-wire coupling
Decoupling load UAC MAX 440V/16A, UDC MAX 220V/16A
Coupling capacitor 9 μF (L-PE), 18 μF (L-L)
Coupling resistor 12 Ω, 2 Ω
Residual voltage at the input of the device under test No more than 15% of the applied surge voltage or twice the peak value of the rated coupling/decoupling network
