Very soft EMC 7400 series foam gasket
Very soft EMC 7400 series foam gasket

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HOLLAND SHIELDING

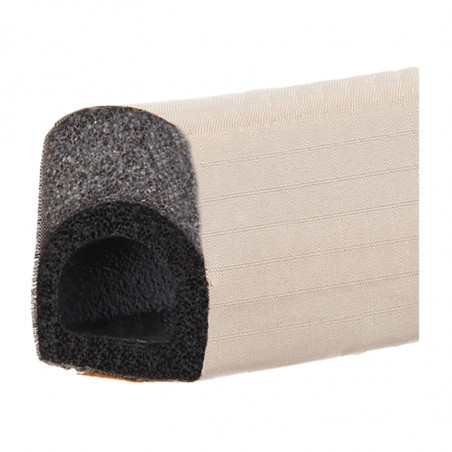

Very soft EMC 7400 series foam gasket

Designed for doors and panels where low compression force is required.


The 7400 Series seal is a seal with high damping capacity at low compression forces. The seal is made of polyurethane foam with a maximum deformation of up to 80%.
The 7400 Series seal is covered with a highly conductive, metallized, wear-resistant fabric.
uszczelka 7400
Shielding Parameters:
Hz frequency Field dB shielding
1 M E 115
10M E 108
100 M E 102
400 M E 92
1G P 90
10 G P 87
Chart

7400 series gasket chart

7400 Series Gasket Chart

Gasket Specifications:

- Deformation up to 80%
- Low clamping force required
- Very high electrical conductivity
- Easy to install
- Roll lengths: 50, 10, 250, or 1000 m
- Surface resistance: < 0.08 Ω/m 2


25
Width X
[mm]
Y height [mm] 4 5 6 9 10 12 15 18 20 25
3 7443 7453 7463 7493 74103 74123 74153 74183 74203 74253
4 7444 7454 7464 7494 74104 74124 74154 74184 74204 74254
6 7466 7496 74106 74126 74156 74186 74206 74256
8 7488 74108 74128 74158 74188 74208 74258
9 7499 74109 74129 74159 74189 74209 74259
10 741010 741210 741510 741810 742010 742510
12 741212 741512 741812 742012 742512
15 741515 741815 742015 742515
18 741818 742018 742518
20 742020 742520
742525

EPDM rubber 740072 740068 740058 740064 740076 740051
YxX mm 2 x4 mm 3x6 mm 4 x8 mm 8x12 mm 10x12 mm 16x20 mm
YxXinch .079" x.157" .118"x.236" .157" x.315" .315" x.472" .394" x .472" 16x20 mm
Dimensions

7400 Series Gasket Dimensions

ORDER EXAMPLE:

7496 – 01 – P

P: Polyurethane foam, standard
F: Fire-retardant UL94V-O foam
01: with a self-adhesive layer in the center
02: without a self-adhesive layer
03: with a conductive self-adhesive layer (dedicated to small sizes)
06: with an asymmetric self-adhesive layer

Less
Read more
