Manufacturer: ZWARpol

HV and MV test equipment

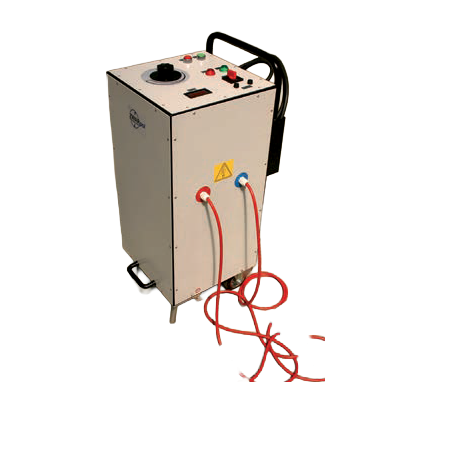

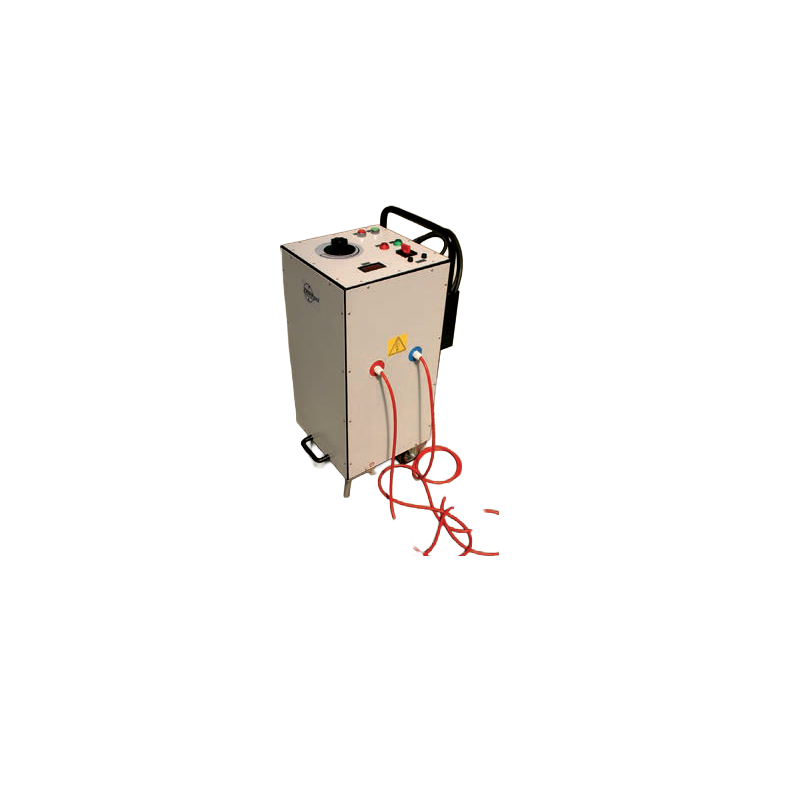

AP-type test devices are adjustable sources of AC, DC, or AC and DC voltage. They are used in laboratory insulation testing of systems with high internal capacitance. They are versatile, easy-to-use, and safe tools for checking the dielectric strength of insulation systems.

Features:

AP2-5

Maximum test voltage up to 5 kV;

Voltage measurement is performed on the low voltage side. The digital voltage meter is calibrated in kilovolts;

The device can be manufactured with two insulated terminals or with one grounded and one insulated terminal.

AP1-12

Two maximum test voltage ranges up to 6 kV and up to 12 kV;

The microprocessor controller allows you to program the voltage value, voltage increase speed, and test duration;

The switchable power supply winding allows for two voltage ranges, which increases the accuracy of settings and measurements;

Voltage measurement can be performed on the low voltage side or from a measuring tap derived from the HV winding. The voltage meter is calibrated in kilovolts;

Digital current and voltage meters.

AP05-5

Maximum test voltage up to 5 kV;

The microprocessor controller allows you to program the voltage value, voltage increase speed, and test duration;

Voltage measurement is performed on the high-voltage side, via a voltage divider;

Digital current and voltage meters;

It is possible to make the device with two insulated terminals or with one grounded and one insulated terminal (current measurement only in the second version);

High voltage is switched on using a button on the gun or on the front panel.:

AP1-10

Two ranges of maximum AC or DC test voltage up to 5 kV and 10 kV;

The microprocessor controller allows you to program the voltage value, voltage increase speed, and test duration;

The switchable power supply winding allows for two voltage ranges, which increases the accuracy of settings and measurements;

Voltage measurement is performed on the high-voltage side, via a voltage divider;

Digital current and voltage meters.

Technical data:

Type: AP2-5 AP1-12 AP05-5 AP1-10
Supply voltage 230V 230V 230V
Secondary voltage adjustable 0-5 kV AC 0-6 kV or 0-12 kV AC 0-5 kV AC 0-10 kV AC
0-10 kV DC
Maximum current HV 0.4 A 0.1 A 100 mA 150 mA AC
5 mA DC
Voltage measurement accuracy ±3% ±3% ±2% ±2%
Raising speed Voltage 0.05 – 0.5 kV/s 0.05 – 0.5 kV/s 0.05 – 0.5 kV/s 0.05 – 0.5 kV/s
Test voltage of HV circuits 6 kV AC 14 kV AC 6 kV AC 12 kV AC
Test voltage of low voltage circuits 2 kV 2 kV 2 kV 2 kV
Dimensions 360×490×880 (h) mm 360×490×880 (h) mm 489×450×193 (h) mm 489×450×520 (h) mm
Weight 70 kg 60 kg 22 kg 65 kg

Advantages:

Operating mode selection – automatic or manual (except AP2-5);

Device protection by electronic overload and short-circuit release;

Regulating autotransformer with motor drive (except AP2-5)

Simple operation and clear signaling system;

Safe use thanks to the possibility of termination leads with convenient "pistol" electrodes;

Versatile use;

Standard equipment of devices with HV cables;

Production process parameters in accordance with the Quality Management System

        according to PN-EN ISO 9001:2009.

AP03-30, AP03-40, AP03-50 devices

• Maximum test voltage depending on the type up to 30, 40, 50 kV.

• Voltage measurement is performed on the low voltage side.

• The voltage meter is calibrated in kilovolts.

• Version A: Analog meters.

• Version C: Digital meters and timer.

      AP03-30A                               AP03-40C                               AP03-50C

Technical data:

Type AP03-30 A and C AP03-40 A and C AP03-50 A and C
Supply voltage 50 Hz 230 V 230 V 230 V
Secondary AC voltage 0-30 kV 0-40 kV 0-50 kV
Maximum continuous current 6 mA 6 mA 6 mA
Maximum 30-min current 10 mA 10 mA 10 mA
Measurement accuracy Voltage ±2 % ±2 % ±2 %
Current measurement accuracy ±2 % ±2 % ±2 %
Weight 26 kg 26 kg 40 kg

Advantages:

• Smooth voltage regulation;

• Safety lock to prevent accidental switching on voltage;

• Device protection with an electronic overload-short circuit release;

• Easy to use thanks to appropriate control and signaling systems;

• Ergonomic design facilitates testing;

• Mobility;

• Suitable for field testing thanks to a durable housing made of aluminum alloy;

• Production process parameters compliant with the Quality Management System according to PN-EN ISO 9001:2009.

Optional equipment:

HV cable - length according to customer needs.


Test devices with parameters other than the standard can be manufactured after consultation with the manufacturer.
