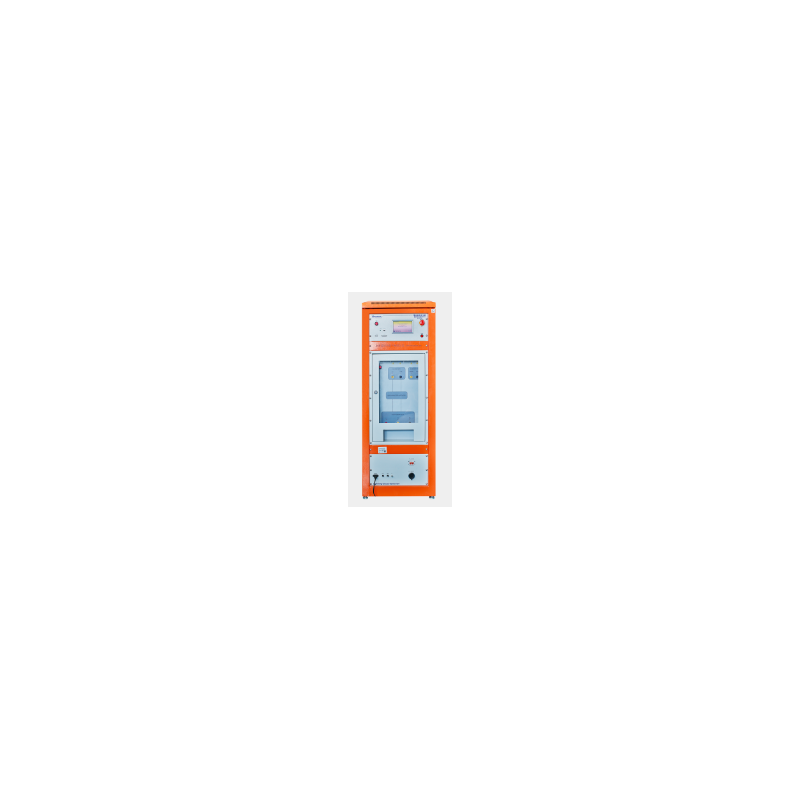

Lightning surge simulator SUG61005TBX（20KV）

  • SUG61005TBX

SUG61005TBX (20KV) is an advanced surge generator designed to meet electromagnetic compatibility (EMC) requirements for surge immunity testing (SUG). Used to evaluate the performance of power lines and internal connecting conductors in electrical and electronic devices when exposed to high-energy transient disturbances caused by circuit switching or natural lightning strikes.

SUG61005TBX (20KV) Features:

  • Multi-channel testing support: Allows testing on multiple paths simultaneously.
  • Free switching of positive and negative polarity: Provides flexibility in test configuration.
  • One-button language mode switching (Chinese/English): Facilitates operation for users in different regions.
  • Built-in parameters compliant with international standards: Guarantees compliance with commonly accepted testing standards.
  • High build quality, Durability: Robust construction ensures long-lasting and reliable operation.
  • Maximum test voltage: 7000V: Allows testing of a wide range of devices.
  • 10.1-inch color touchscreen: Intuitive user interface for easy navigation and configuration.
  • Built-in real-time temperature, humidity, time, and voltage measurement: Provides comprehensive data on test conditions.
  • Possibility to set the phase angle in asynchronous or 0~360° mode: Allows precise control over the pulse timing.
  • Automatic switching of the overvoltage test mode: Optimizes and speeds up the testing process.
  • Built-in RJ45 interface, optional remote control: Offers integration with automation and remote management systems.
  • The built-in high-voltage differential probe and current transformer enable waveform measurement: Provides accurate monitoring and analysis of generated pulses.

Standard Compliance:

The SUG61005TBX (20KV) device complies with the following key standards, confirming its reliability and precision in EMC testing:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41 / C62.45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45

Parameters:

Parameter Value
Device model SUG61005TBX (20KV)
Open Circuit Voltage 2000V ~ 20000V ±10%
Voltage Resolution 100 V
Rise Time (L-L) 1.2 µs ±30%
Pulse Duration (L-L) 50 µs ±20%
Short circuit current (L-PE) 1000A ~ 10000A ±10%
Rise time (L-PE) 8 µs ±20%
Pulse duration (L-PE) 20 µs ±20%
Output Polarity +, –, +/–, –/+
Output Impedance 2 Ω
Voltage Surge (Adjustable) 0 ~ 20000V
Surge Interval 5 s ~ 9999 sec
Number of surges 1 c ~ 60000 c
Trigger mode Manual, external, interval
Phase synchronization 0° ~ 359° (50 Hz or 60 Hz) (synchronous/asynchronous synchronization)
CDN (Coupling/Decoupling Network) Built-in CDN
Coupling Single-phase, 3-wire
Decoupling Load UAC MAX 240V/16A, UDC MAX 220V/16A
Coupling capacitor 9μF (L-PE), 18μF (L-L)
Coupling resistor 12μF, 2μF
Residual voltage at the end of the test sample No more than 15% of the impulse voltage or twice the rated voltage of the coupling/decoupling network
