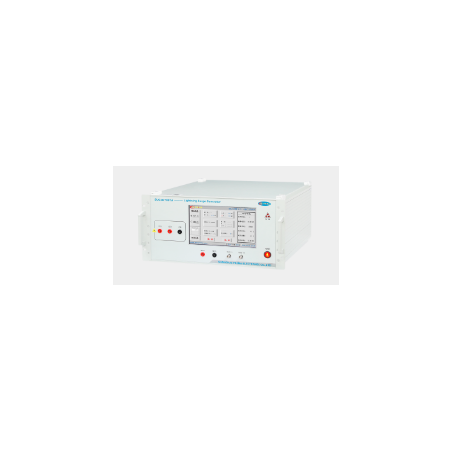

Surge simulator SUG10/700TB

  • SUG10/700TB

SUG10/700TB is a specialized surge simulator designed to meet the requirements of electromagnetic compatibility - surge immunity test (SUG). Used to evaluate the performance of power lines and internal electrical and electronic device connections when exposed to high-energy transient interference caused by switches or natural lightning strikes.

Device Features:

  • Supports multi-channel testing
  • Free switching of positive and negative polarity
  • One-button Chinese and English language switching
  • Built-in parameters compliant with international standards
  • High-quality build quality and durability
  • Maximum test voltage up to 10,000 V
  • 10.1-inch color touchscreen
  • Built-in temperature and humidity measurement, clock, and real-time high-voltage display
  • Asynchronous phase angle setting or free adjustment from 0 to 360°
  • Automatic Full-speed surge test mode switching
  • Built-in RJ45 interface, optional remote control
  • Built-in high-voltage differential probe and current transformer for waveform measurement

Compliance with standards:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41/45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45
  • IEC/EN 61010

Parameters:

Rise time (front)
Parameter Value
Open circuit voltage 200V ~ ±10000V ±10%
10 µs ³30%
Pulse duration 700 µs ³20%
Short circuit current 5A ~ 250A ³10%
Rise time (current) 5 µs ±20%
Duration (current) 320 µs ±20%
Polarity +, -, +/-, -/+
Output impedance 15Ω, 40Ω ±10%
Step Voltage 0 ~ 10000V
Pulse Interval 0 ~ 9999s
Number of Pulses 1 ~ 9999c
Trigger Mode Manual, external, interval
