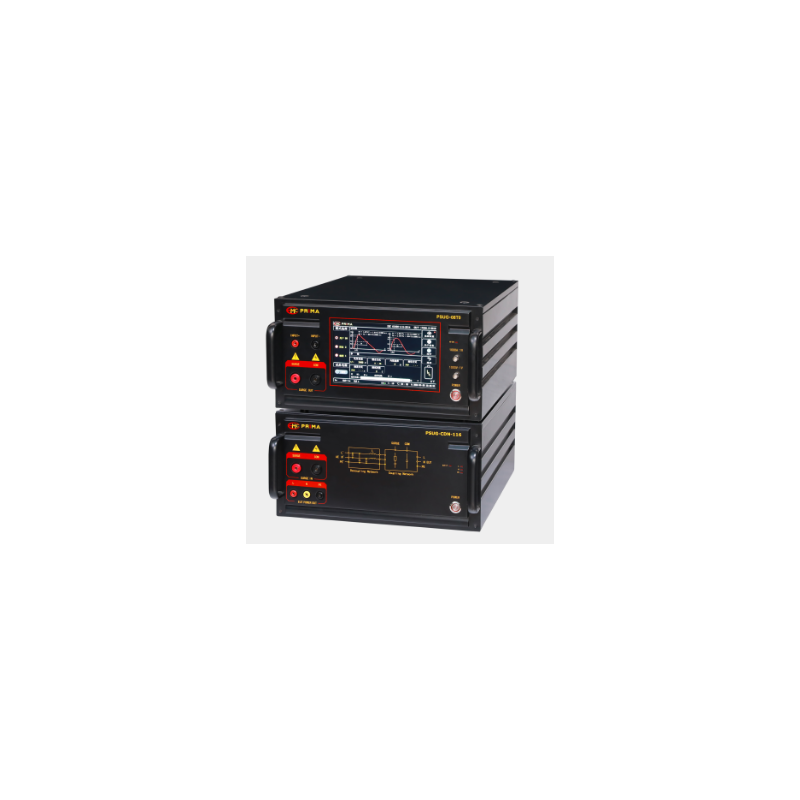

PSUG-08T0 surge simulator

  • PSUG-08T0

PSUG-08T0 is an advanced surge generator designed for rigorous electromagnetic (EMC) surge immunity (SUG) testing. Its main purpose is to evaluate the performance of power cables and internal connections of electrical and electronic devices under high-energy transient interference conditions, which can be caused by circuit switching operations or natural lightning strikes.

Features:

  • Supports multi-channel testing
  • Ability to freely switch between positive and negative polarity
  • One-button Chinese and English language switching
  • Built-in parameters compliant with international standards
  • Excellent workmanship and durability
  • Maximum test voltage up to 8000V
  • 10.1-inch color touchscreen
  • Built-in temperature, humidity, time measurement, and real-time high-voltage reading
  • Phase angle setting asynchronously or within the 0–360° range
  • Surge test mode with automatic full-speed switching
  • Built-in RJ45 interface, optional remote control
  • Built-in high-voltage differential probe and current transformer for waveform measurement

Standard Compliance:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41 / C62.45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45

Parameters:

Parameter Value
Open circuit voltage 200V ~ 8000V ±10%
Voltage Resolution 1 V
Rise Time (1) 1.2 µs ±30%
Pulse Duration (1) 50 µs ±20%
Short Circuit Current 100 A ~ 4000 A ±10%
Rise time (2) 8 µs ±20%
Pulse duration (2) 20 µs ±20%
Output polarity +, -, +/-, -/+
Impedance Output 2 Ω
Voltage Step 0 ~ 8000 V
Time Between Pulses 5 s ~ 9999 s
Number of Pulses 1 c ~ 60000 c
Trigger Mode Manual, External, Interval
Phase Sync 0° ~ 359° (50 Hz or 60 Hz) (synchronous, asynchronous)

Embedded CDN:

Parameter Value
Coupling 3-wire, 1-phase coupling
Decoupling Load UAC MAX 240V / 16A UDC MAX 220V / 16A
Coupling Capacitor 9μF (L-PE), 18μF (L-L)
Coupling Resistor 12μF, 2μF
Residual voltage at the end of the device under test No more than 15% of the test voltage or 2× peak CDN
Less
Read more
