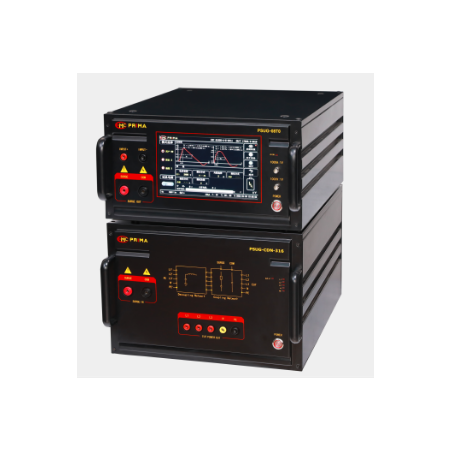

  • PSUG-08T0 CDN-316

PSUG-08T0 is an advanced surge generator designed for rigorous electromagnetic (EMC) surge immunity (SUG) testing. Its main purpose is to evaluate the performance of power cables and internal connections of electrical and electronic devices under conditions of high-energy transient interference, which can be caused by circuit switching operations or natural lightning strikes.

Device Features:

  • Supports multi-channel testing
  • Free switching of positive and negative polarity
  • One-button Chinese and English language switching
  • Built-in parameters compliant with international standards
  • High-quality build quality and durability
  • Maximum test voltage up to 8000V
  • 10.1-inch color touchscreen
  • Built-in temperature, humidity, time measurement, and real-time high-voltage display
  • Asynchronous phase angle or adjustable within the 0~360° range
  • Automatic switching of the full-speed surge test mode
  • Built-in RJ45 interface, remote control capability (optional)
  • Built-in differential high-voltage probe and current transformer for waveform measurement

Compliance with standards:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41 / C62.45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45

Parameters:

200V ~ 8000V £10%
Parameter Value
Product model PSUG-08T0
Open circuit voltage
Voltage Resolution 1 V
Rise Time 1.2 µs £30%
Duration 50 µs £20%
Short Circuit Current 100 A ~ 4000 A ±10%
Rise Time 8 µs ±20%
Duration 20 µs ±20%
Output Polarity +, -, +/-, -/+
Output Impedance 2 Ω
Voltage Surge 0 ~ 8000V
Pulse Interval 5s ~ 9999s
Number of Test Pulses 1c ~ 60000c
Trigger mode Manual, external, interval
Phase sync 0° ~ 359° (50 Hz or 60 Hz) (Synchronous/Asynchronous)

CDN:

Parameter Value
Product model CDN-316
Coupling Type Three-Phase Five-Wire Coupling
Decoupling Load UAC MAX 440V / 16A, UDC MAX 220V / 16A
Coupling Capacitor 9 μF (L-PE), 18 μF (L-L)
Resistor Coupling 12 Ω, 2 Ω
Residual impulse voltage at the end of EUT coupling Not more than 15% of the test voltage or 2× rated coupling/decoupling voltage
