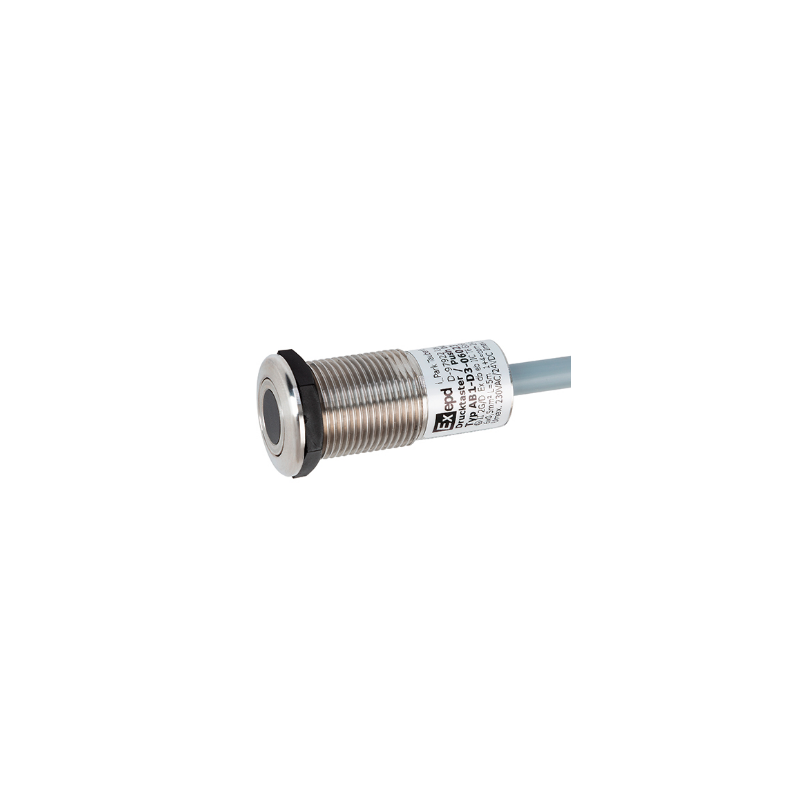

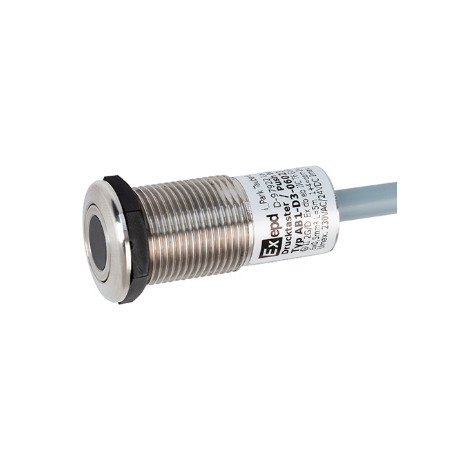

Button type AB1-D3
Button type AB1-D3

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EXEPD

Button type AB1-D3

  • AB1-D3
  • Power supply
  • ATEX

The AB1-D3 pushbutton is used to control machines and systems in potentially explosive atmospheres – Zone 1/2 and Zone 21/22.

The high IP protection rating and corrosion-resistant stainless steel housing guarantee a long service life, even in aggressive environmental conditions. Thanks to its exceptionally flat design and rounded edges, this pushbutton offers a small surface area exposed to mechanical damage and dirt buildup.

CONNECT and ACT – Thanks to its approval as a device, the pushbutton can be mounted on the front of a machine in an Ex zone without the need for additional certification. The shallow mounting depth allows for particularly space-saving installation.

The button has also been tested for installation in certified control panels with Ex e and Ex t protection types.

The scope of delivery includes a plastic cap and colored labels (inserts) in red, yellow, green, white, and black.

Weight
Category Parameter Value
Explosion-proof Protection type II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T85°C Db
Certificate IBExU 22 ATEX 1083 X
Ambient temperature –20 °C ... +60 °C
Electrical data Operating voltage 230 VAC / 24 VDC (dual insulation)
Current consumption max. 1 A
Electrical Life 6.0 E + 03 (230 VAC 1A)
5.0 E + 04 (30 VDC 1A)
Type AB1-D3-03* Cable 3 × 0.5 mm² (Oliflex 100) / Ø 5.4 mm
Electrical connections
(1) brown = COM
(2) black = NC
(3) gray = NO
Type AB1-D3-06* Cable 6 × 0.5 mm² / Ø 6.9 mm
Electrical Connections
(1) brown + (4) blue = COM
(2) black + (5) white = NC
(3) gray + (6) orange = NO
Mechanical Data Housing Material Stainless Steel 1.4305
Mechanical Lifespan 1.0 E + 08 Switching Cycles
Sealing EPDM
Protection level IP 65
Impact resistance 7 Nm
Mounting hole 22.0 … 22.3 mm / M22 × 1.5
Tightening torque 8 Nm
Mounting wall thickness 1.0 … 15.0 mm
Logistics data 150 g (1.5 m)
Tariff code (HS code) 8536 5007
