Manufacturer: EMC Prima

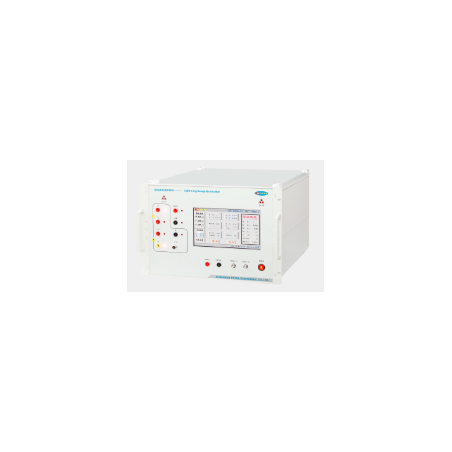

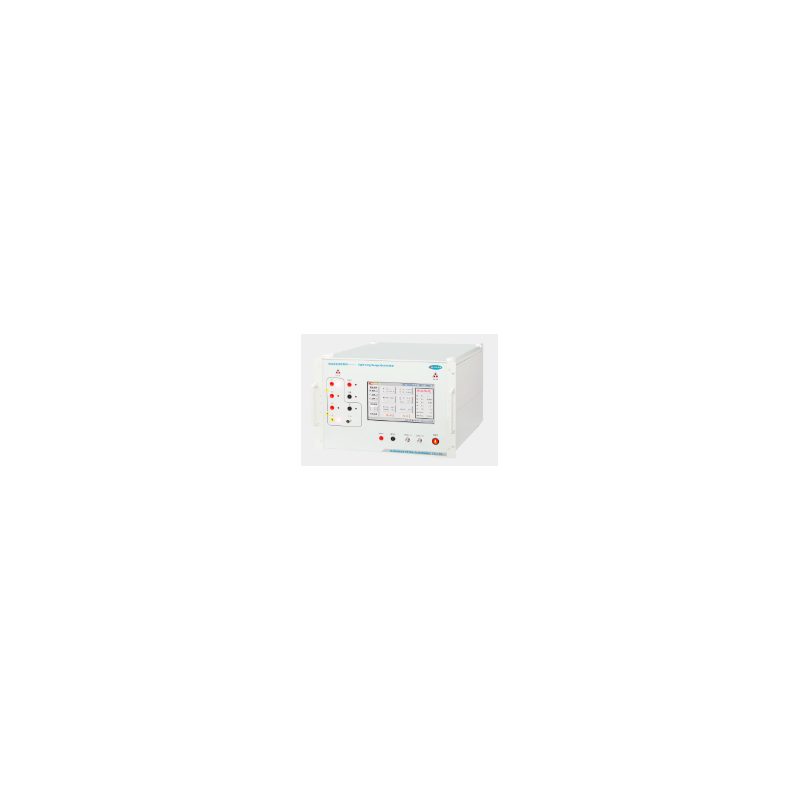

Lightning surge simulator SUG61005TEG

  • SUG61005TEG

SUG61005TEG is a surge generator designed specifically to meet the requirements of the electromagnetic compatibility (EMC) – surge immunity test (SUG). This device is used to evaluate the performance of power lines and internal connecting cables in electrical and electronic devices when they are exposed to short-term, high-energy interference caused by switching circuits or natural lightning strikes.

SUG61005TEG Features:

  • Supports multi-channel testing
  • Free switching of positive and negative polarity
  • One-button language mode switching (Chinese/English)
  • Built-in parameters compliant with international standards
  • High-quality build quality and durability
  • Maximum test voltage: 7000V
  • 10.1-inch color touchscreen
  • Built-in real-time temperature, humidity, time, and voltage measurement
  • Ability to set the phase angle in asynchronous or 0~360° mode.
  • Automatic switching of the surge test mode.
  • Built-in RJ45 interface, optional remote control.
  • Built-in high-voltage differential probe and current transformer enable waveform measurement.

Compliance with standards:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41 / C62.45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45

Parameters:

Parameter Value
Device model SUG61005TEG
Voltage Open Circuit 200V ~ 6000V ±10%
Voltage Resolution 1 V
Rise Time (L-L) 1.2 µs ±30%
Pulse Duration (L-L) 50 µs ±20%
Short-circuit current (L-PE) 100A ~ 3000A ±10%
Rise time (L-PE) 8 µs ±20%
Pulse duration (L-PE) 20 µs ±20%
Output Polarity +, –, +/–, –/+
Output Impedance 2 Ω
Voltage Surge (Adjustable) 0 ~ 7000V
Surge Interval 5 s ~ 9999 s
Number of surges 1 c ~ 60000 c
Trigger mode Manual, external, interval
Phase synchronization 0° ~ 359° (50 Hz or 60 Hz) (synchronous/asynchronous synchronization)
CDN (Coupling/Decoupling Network) Built-in CDN
Coupling Three-phase, five-wire
Decoupling Load UAC MAX 380V/16A, UDC MAX 220V/16A
Coupling capacitor 9μF (L-PE), 18μF (L-L)
Coupling resistor 12μF, 2μF
Residual voltage at the end of the test sample No more than 15% of the impulse voltage or twice the rated voltage of the coupling/decoupling network
