Surge Simulator SUG61005TB
Surge Simulator SUG61005TB

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EMC Prima

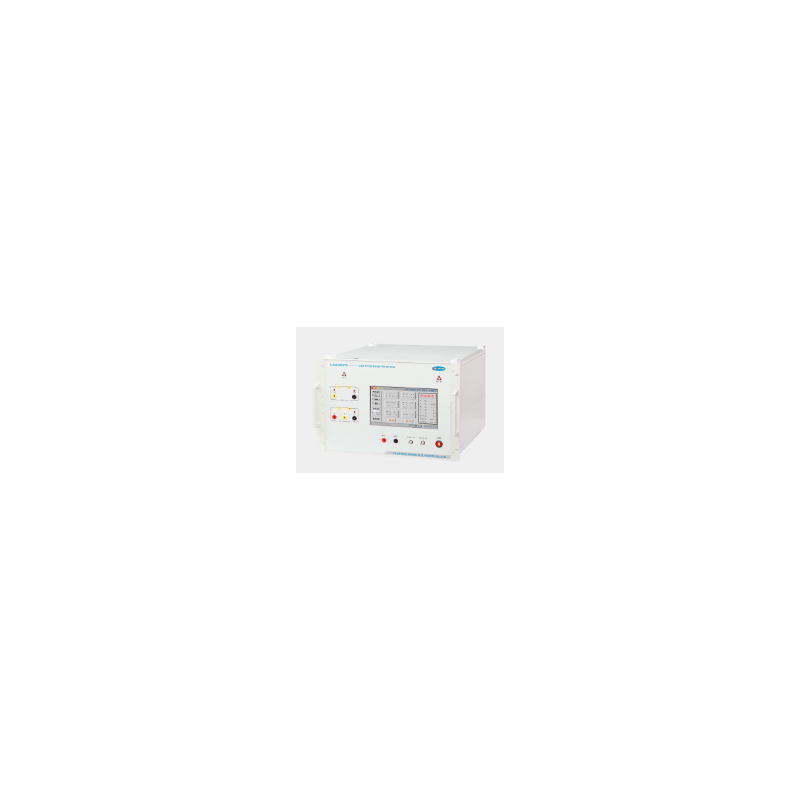

Surge Simulator SUG61005TB

  • SUG61005TB

SUG61005TB is a specialized surge simulator designed to meet the stringent electromagnetic compatibility (EMC) requirements for surge immunity testing (SUG). This device is used to evaluate the performance of both power lines and internal connections of electrical and electronic devices when exposed to high-energy transient interference, which can be caused by switching operations or natural lightning strikes.

Device Features:

  • Supports multi-channel testing
  • Free switching of positive and negative polarity
  • One-button Chinese and English language switching
  • Built-in parameters compliant with international standards
  • High-quality build quality and durability
  • Maximum test voltage up to 7000 V
  • 10.1-inch color touchscreen
  • Built-in temperature and humidity measurement, clock, and real-time high-voltage display
  • Asynchronous phase angle setting or free adjustment 0~360°C
  • Automatic switching of full-speed surge test mode
  • Built-in RJ45 interface, optional remote control
  • Built-in high-voltage differential probe and current transformer for waveform measurement

Compliance with standards:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41/45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45

Parameters:

Parameter Value
Open circuit voltage 200V ~ 7000V ±10%
Voltage Resolution 1 V
Rise Time (Voltage Front) 1.2 µs ³30%
Pulse Duration 50 µs ³20%
Short Circuit Current 100 A ~ 3500 A ±10%
Rise time (current) 8 µs ±20%
Current pulse duration 20 µs ±20%
Output polarity +, -, +/-, -/+
Impedance Output 2 Ω
Step Voltage Range 0 ~ 7000 V
Time Between Pulses (Interval) 5 s ~ 9999 s
Number of Pulses 1 ~ 60000
Trigger Mode Manual, External, Interval
Phase Sync 0° ~ 359° (50 Hz or 60 Hz) (Synchronous or asynchronous)

CDN (Coupling/Decoupling Network):

Parameter Value
CDN type Built-in
Coupling Single-phase, three-wire coupling
Decoupling load UAC MAX 240V/16A; UDC MAX 220V/16A
Coupling capacitor 9 Ω (L-PE), 18 Ω (L-L)
Coupling resistor 12 Ω, 2 Ω
Residual voltage at the end of the pulse injection in the EUT No more than 15% of the test pulse voltage or twice the rated mains peak voltage coupling/decoupling
