Manufacturer: EMC Prima

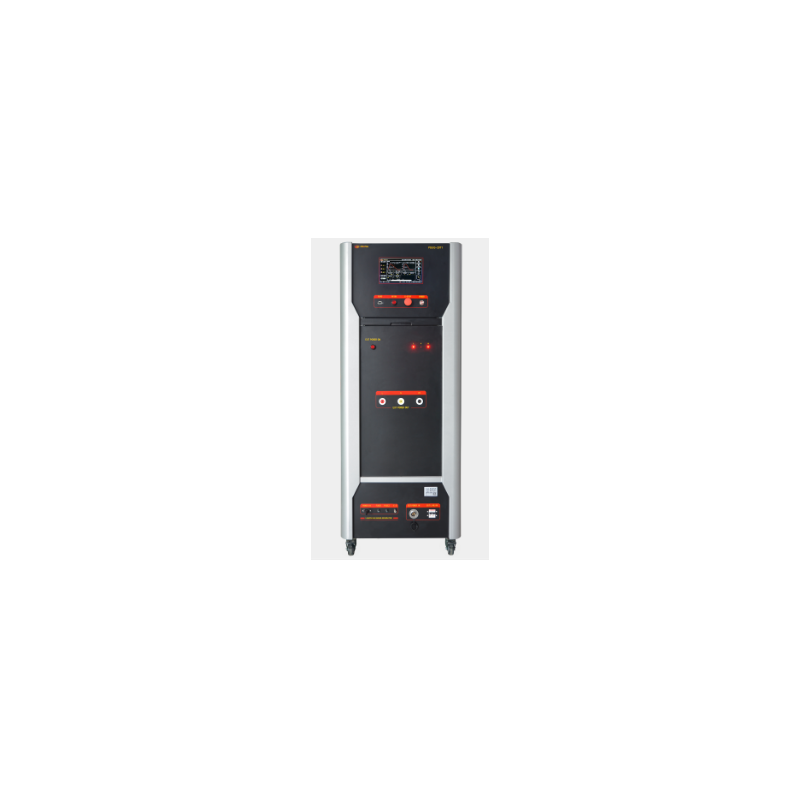

PSUG-20T1 surge simulator

  • PSUG-20T1

PSUG-20T1 is an advanced surge simulator designed for rigorous electromagnetic (EMC) surge (SUG) immunity testing. This device is used to evaluate the performance of power cables and internal connections in electrical and electronic devices that may be exposed to high-energy transient interference from circuit switches or natural lightning strikes.

Device Features:

  • Supports multi-channel testing
  • Free switching of positive and negative polarity
  • One-button Chinese and English language switching
  • Built-in parameters compliant with international standards
  • High-quality build quality and durability
  • Maximum test voltage up to 20,000V
  • 10.1-inch color touchscreen
  • Built-in temperature, humidity, time measurement, and real-time high-voltage voltage display
  • Asynchronous phase angle or adjustable within 0~360°C
  • Automatic switching to full-speed surge test mode
  • Built-in RJ45 interface, remote control capability (optional)
  • Built-in differential high-voltage probe and current transformer for waveform measurement

Compliance with standards:

  • IEC/EN 60664
  • GB/T 17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41 / C62.45
  • GB/T 16927.1
  • IEC/EN 61643-1
  • ITU K44
  • ITU K45

Parameters:

2000V ~ 20000V 10%
Parameter Value
Model PSUG-20T1
Open circuit voltage
Voltage Resolution 100 V
Rise Time 1.2 µs 30%
Duration 50 µs 20%
Short Circuit Current 1000 A ~ 10000 A ±10%
Rise Time 8 µs ±20%
Duration 20 µs ±20%
Output Polarity +, -, +/-, -/+
Output Impedance 2 Ω
Step Voltage Range 0 ~ 20000V
Time Interval Between Pulses 5 s ~ 9999 s
Number of Pulses Test 1c ~ 60000c
Trigger mode Manual, external, interval
Phase synchronization 0° ~ 359° (50 Hz or 60 Hz) (Synchronous/Asynchronous)

CDN:

Parameter Value
CDN type Built-in CDN
Coupling Single-phase, three-wire coupling
Decoupling load UAC MAX 240V/16A, UDC MAX 220V/16A
Coupling capacitor 9 μF (L-PE), 18 μF (L-L)
Resistor Coupling 12 Ω, 2 Ω
Residual voltage at the input of the device under test Not more than 15% of the applied surge voltage or twice the peak value of the rated coupling/decoupling network
